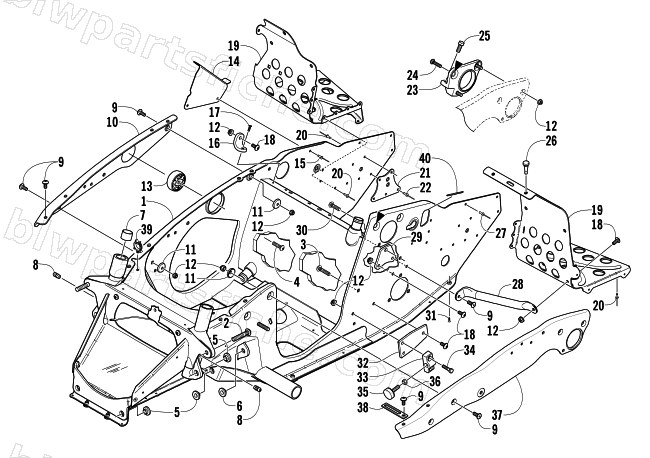

2004 Arctic Cat SABERCAT 500 LX — FRONT FRAME AND FOOTREST ASSEMBLY
2004 SABERCAT 500 LX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-819 | CHASSIS, S/P ASSY-PTD BLK | 1 | $1,390.95 | |
| 2 | 1623-019 | BOLT,RIB CAR-3/8-16X2.00 | 1 | $3.85 | |
| 3 | 1623-020 | BOLT,RIB CAR-5/16-18X1.62 | 1 | $20.63 | |
| 4 | 1623-212 | BOLT,RIBBED CAR-5/16-18 X 1.37 | 1 | $5.09 | |
| 5 | 0607-657 | BUSHING, LOWER- A-ARM | 1 | $2.47 | |
| 6 | 0607-656 | BUSHING, UPPER- A-ARM | 1 | $2.47 | |
| 7 | 0675-161 | BEARING-14DU12 | 1 | $16.49 | |
| 8 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 9 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 10 | 2706-682 | BRACE,SIDE PLATE-RH-PTD BLK | 1 | $47.95 | |
| 11 | 0623-943 | WASHER,SIDE PLATE BRACE | 1 | $30.95 | |
| 12 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 13 | 0608-364 | MOUNT,ENGINE-45 DURO | 1 | $65.95 | |
| 14 | 2706-552 | GUARD,HOSE-PTD BLK | 1 | $18.95 | |
| 15 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 16 | 2606-908 | SUPPORT,SIDE PLATE-RH | 1 | $17.87 | |
| 17 | 1623-115 | SCREW,SELF TAP-TSFH 10-16X.750 TYP B | 1 | $0.40 | |
| 18 | 8017-579 | SCREW,MACH-TSTRH 1/4-20X.625 G2 Z&Y | 1 | $6.83 | |
| 19 | 2706-550 | FOOTREST-RIGHT PTD BLK | 1 | $113.95 | |
| 19 | 2706-551 | FOOTREST-LEFT PTD BLK | 1 | $124.95 | |
| 20 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 21 | 2706-151 | PLATE,BACKING-FRT ARM-PTD BLK | 1 | $20.63 | |
| 22 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 23 | 0708-433 | BRKT,BEARING SUPPORT- ASSY | 1 | $42.95 | |
| 24 | 0623-117 | BOLT,RIB NECK-RDH 1/4-20X1.00 Z&Y | 1 | $20.63 | |
| 25 | 0623-190 | SCREW,SELF TAP 1/4-20X3/4 TYPE F | 1 | $1.09 | |
| 26 | 3606-178 | BUMPER,RUBBER | 1 | $2.88 | |
| 27 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 28 | 2706-517 | TUBE,BELT GUARD-PTD BLK | 1 | $19.95 | |
| 29 | 0607-725 | PLATE,MTG-SNUBBER | 1 | $74.95 | |
| 30 | 1623-167 | BOLT,RIB CAR-5/16-18X1.125 | 1 | $1.95 | |
| 31 | 1623-018 | SCREW,SELF TAP-TSFH 10-16X.50 TYPE B | 1 | $0.26 | |
| 32 | 2606-939 | PLATE,MTG-TORQUE BUMPER | 1 | $5.95 | |
| 33 | 0704-352 | ADJUSTER,TRACK-MACH. | 1 | $24.77 | |
| 34 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 35 | 0608-396 | BUMPER,TORQ.{1.55-1.45}-ENGINE-40 DURO | 1 | $13.73 | |
| 36 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 37 | 2706-507 | BRACE,SIDE PLATE-UPR LH-PTD | 1 | $67.95 | |
| 38 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 39 | 1623-171 | CLIP,SNAP | 1 | $2.88 | |
| 40 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 |
