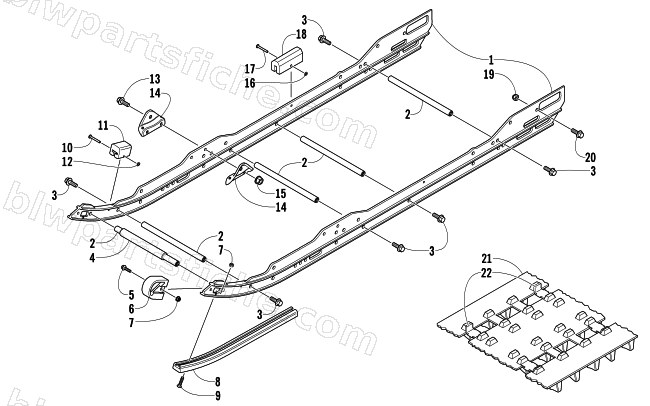

2004 Arctic Cat SABERCAT 600 EFI EXT — SLIDE RAIL AND TRACK ASSEMBLY
2004 SABERCAT 600 EFI EXT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2604-643 | RAIL,SUSP-144"-FORMED | 1 | $271.95 | |
| 2 | 0604-930 | AXLE,XBRC (ALUM) -625X8.750 (3/8-16) | 1 | $37.95 | |
| 4 | 2604-281 | SPACER,ALUMINUM-LIMITER STRAPS -5.38" | 1 | $13.73 | |
| 5 | 8020-042 | SCREW,CAP-HFH 1/4-20 X 1.00 Z&Y | 1 | $1.09 | |
| 6 | 2604-842 | NOSEPIECE,RAIL-TAPERED | 1 | $30.95 | |
| 7 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 8 | 2604-799 | WEARSTRIP,162" SLIDE RAIL-BLK | 1 | $38.95 | |
| 9 | 0123-859 | SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z&Y | 1 | $1.09 | |
| 10 | 0123-767 | RIVET,SOLID-1/8 X 1.50 | 1 | $0.95 | |
| 11 | 0104-631 | PAD,SHOCK-RUBBER | 1 | $6.06 | |
| 12 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 13 | 8020-131 | SCREW,CAP-HFH 5/16-18 X0.875 G5 Z&Y | 1 | $1.50 | |
| 14 | 2604-159 | BRACKET, MTG - FRONT ARM-PTD BLK | 1 | $30.95 | |
| 15 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 16 | 0623-773 | PUSHNUT - 3/16 DIA STUD | 1 | $1.09 | |
| 17 | 0623-772 | RIVET,SOLID-3/16X1.5 | 1 | $0.95 | |
| 18 | 1604-607 | PAD,SHOCK-RUBBER PWDR | 1 | $15.11 | |
| 19 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 20 | 8020-220 | SCREW,CAP-HFH 3/8-16 X 0.750 Z&Y | 1 | $1.09 | |
| 21 | 1602-750 | TRACK,13.5X144X1.25 | 1 | $1,414.95 | |
| 22 | 2602-383 | CLIP,GUIDE | 1 | $4.26 |
