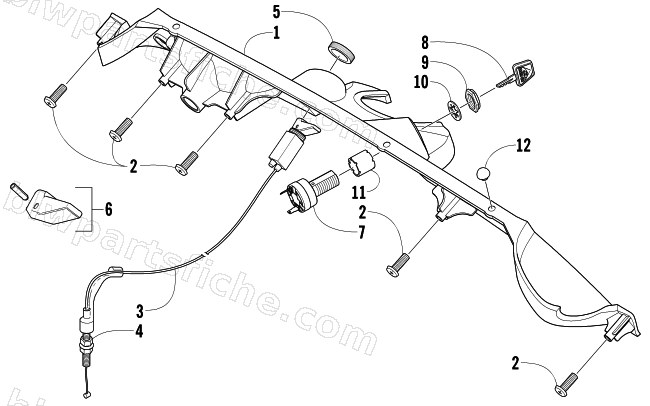

CONSOLE AND SWITCH ASSEMBLY
2004 SABERCAT 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3606-214 | CONSOLE, CARB | 1 | $64.95 | |
| 2 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 3 | 0687-157 | CABLE,CHOKE-TWIN | 1 | $112.95 | |
| 4 | 0623-464 | NUT, LOCKING-THROTTLE CABLE | 1 | $0.26 | |
| 5 | 0687-132 | NUT,PLASTIC-LP CHOKE | 1 | $5.65 | |
| 6 | 1639-835 | KIT, CHOKE LEVER/LONG PULL | 1 | $20.63 | |
| 7 | 0609-286 | SWITCH, IGNITION NORM OPEN | 1 | $66.95 | |
| 9 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 | |
| 10 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 12 | 1612-287 | BUMPER,MOLDED-RUBBER(CHASSIS) | 1 | $3.16 |
