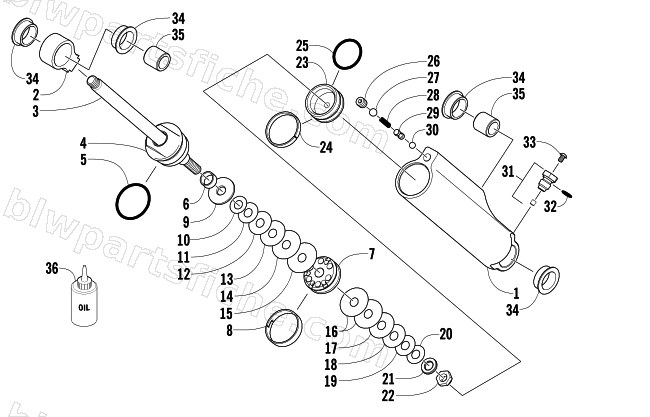

2004 Arctic Cat SABERCAT 600 — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2004 SABERCAT 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2604-327 | BODY, SHOCK-REAR ARM-MACH | 1 | $209.95 | |
| 2 | 1604-763 | EYELET, SHOCK-1.00(PWD METAL) | 1 | $20.95 | |
| 4 | 4604-126 | BEARING, ENDCAP - LONG - W/BLEED ASSY | 1 | $49.95 | |
| 5 | 1604-271 | O-RING,OUTER | 1 | $2.47 | |
| 6 | 2604-168 | SPACER,SHAFT-.530X.75X.200 | 1 | $21.95 | |
| 7 | 2604-619 | PISTON W/TEFLON BAND (.039) | 1 | $72.95 | |
| 8 | 1604-643 | BAND,TEFLON-ENDLESS | 1 | $22.01 | |
| 9 | 1604-272 | WASHER, TOP OUT -1.125 x .094 | 1 | $1.37 | |
| 10 | 2603-054 | VALVE,SHOCK- .800 DIA X .008 | 1 | $14.95 | |
| 11 | 2603-064 | VALVE,SHOCK- .900 DIA X .008 | 1 | $5.95 | |
| 12 | 2603-074 | VALVE,SHOCK-1.000 DIA X .008 | 1 | $5.95 | |
| 13 | 2603-094 | VALVE,SHOCK-1.100 DIA X .008 | 1 | $5.95 | |
| 14 | 2603-124 | VALVE,SHOCK-1.250 DIA X .008 | 1 | $5.95 | |
| 15 | 2603-134 | VALVE,SHOCK-1.300 DIA X .008 | 1 | $5.95 | |
| 16 | 2603-126 | VALVE,SHOCK-1.250 DIA X .012 | 1 | $5.95 | |
| 17 | 2603-096 | VALVE,SHOCK-1.100 DIA X .012 | 1 | $5.95 | |
| 18 | 2603-076 | VALVE,SHOCK-1.000 DIA X .012 | 1 | $5.95 | |
| 19 | 2603-065 | VALVE,SHOCK- .900 DIA X .010 | 1 | $5.95 | |
| 20 | 2603-055 | VALVE,SHOCK- .800 DIA X .010 | 1 | $5.95 | |
| 21 | 1604-273 | WASHER, BACKUP - .620 x .094 | 1 | $1.95 | |
| 22 | 0623-696 | NUT, FLEX - 3/8-24 UNF Z&Y | 1 | $2.95 | |
| 23 | 0704-791 | PISTON,BLEEDLESS-IFP-ASSY | 1 | $33.95 | |
| 24 | 2604-153 | TEFLON BAND,FLOATING PISTON-1.459" | 1 | $26.95 | |
| 25 | 2604-152 | O-RING,FLOATING PISTON | 1 | $2.88 | |
| 26 | 8080-305 | SCREW,SET-HS 3/8-24 X 3/8 | 1 | $1.95 | |
| 27 | 2604-432 | BALL, .3125"STAINLESS STEEL | 1 | $3.95 | |
| 28 | 2604-433 | SPRING, SHOCK INTERNAL PORT | 1 | $4.95 | |
| 29 | 2604-429 | ROD, INTERNAL-SHOCK SPRING-REAR | 1 | $2.95 | |
| 30 | 2604-431 | BALL, 0.250 STAINLESS STEEL | 1 | $2.95 | |
| 31 | 0704-383 | VALVE, PRESSURE - ASSY | 1 | $14.95 | |
| 32 | 1604-284 | O-RING, PRESSURE VALVE | 1 | $1.95 | |
| 33 | 0624-433 | SCREW, MACH - HSBH 8-32X1/4 SS | 1 | $0.68 | |
| 34 | 1604-262 | BUSHING,SHOCK-.125 FLANGE | 1 | $3.02 | |
| 35 | 1604-397 | SLEEVE, EYELET - INNER - .950 | 1 | $3.99 | |
| 36 | 4639-367 | S/M SYN SHOCK OIL LIGHT WT-1 QUART | 1 | $27.99 |
