2004 Arctic Cat SABERCAT 700 EFI EXT — ELECTRICAL
2004 SABERCAT 700 EFI EXT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

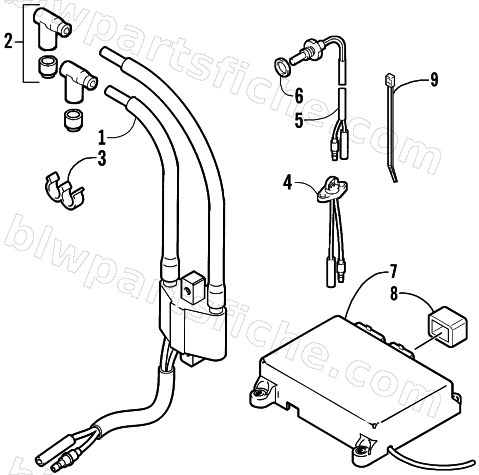

| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-692 | COIL,IGNITION | 1 | $230.95 | |
| 2 | 3006-367 | CAP, SPARK PLUG-NGK TB05EMD | 1 | $24.77 | |
| 3 | 3005-387 | CLIP | 1 | $4.40 | |
| 4 | 3005-460 | SENSOR, AIR TEMP | 1 | $150.95 | |
| 5 | 3006-515 | SENSOR ASSY,COOLING WATER | 1 | $172.95 | |
| 6 | 3005-233 | WASHER, COOLING WATER SENSOR | 1 | $12.35 | |
| 7 | 3006-679 | ECU 04 700 D EID CIR | 1 | $2,358.95 | |
| 7 | 3007-011 | ECU, 06 L/C 700 EID SQU | 1 | $2,400.95 | |
| 7 | 3006-681 | ECU 04 700 D EID TRI | 1 | $2,644.95 | |
| 8 | 3005-908 | COVER, PORT | 1 | $27.95 | |
| 9 | 3005-237 | CLAMP,M19 | 1 | $20.63 |
