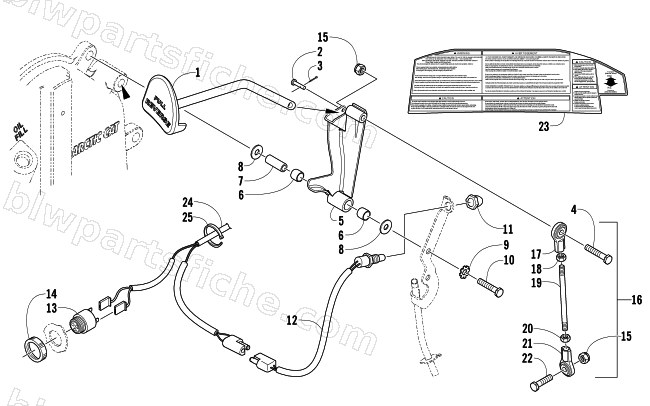

REVERSE SHIFT LEVER ASSEMBLY
2004 SABERCAT 700 EFI EXT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1602-429 | LEVER,REVERSE-ASSY | 1 | $75.95 | |
| 2 | 0623-641 | PIN,CLEVIS-3/16X1 | 1 | $1.19 | |
| 4 | 8002-137 | SCREW,CAP-HH 5/16-18 X2.00 G5 Z&Y | 1 | $1.09 | |
| 5 | 0702-500 | LINK,SHIFT PIVOT-W/BUSHINGS | 1 | $79.95 | |
| 6 | 0602-844 | BEARING, (GARLOCK 08DU08) SHOCK END .500 | 1 | $3.16 | |
| 7 | 0602-853 | AXLE,PIVOT LINK | 1 | $12.95 | |
| 8 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 9 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 10 | 8002-140 | SCREW,CAP-HH 5/16-18 X2.75 G5 Z&Y | 1 | $1.23 | |
| 11 | 0630-013 | BOOT,SWITCH-REVERSE | 1 | $20.63 | |
| 12 | 0630-011 | SWITCH, ALARM | 1 | $60.95 | |
| 13 | 0630-010 | ALARM,REVERSE | 1 | $112.95 | |
| 14 | 0630-017 | RING,RETAINING-REV ALARM | 1 | $12.35 | |
| 15 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 16 | 0702-499 | LINK,SHIFT ROD-ASSY | 1 | $71.95 | |
| 17 | 0602-305 | ROD END L.H. 5/16-24 UNF | 1 | $22.95 | |
| 18 | 0623-260 | NUT,HEX JAM 5/16-24 NF L H | 1 | $1.09 | |
| 20 | 0123-144 | NUT,HEX-JAM 5/16-24 NF ZN | 1 | $0.26 | |
| 21 | 0602-322 | ROD END,5/16-24-RH | 1 | $29.95 | |
| 22 | 8002-132 | SCREW,CAP-HH 5/16-18 X1.00 G5 Z&Y | 1 | $0.95 | |
| 25 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
