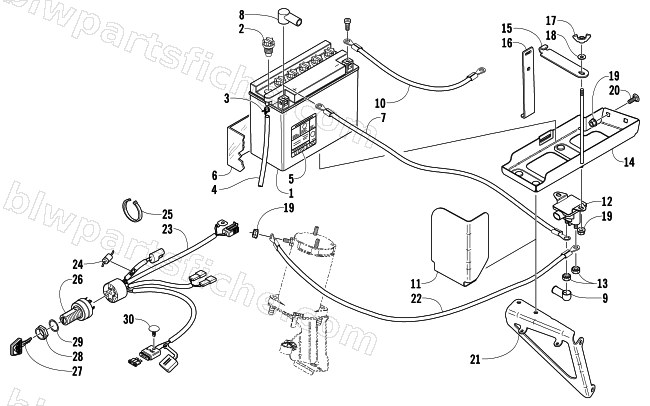

BATTERY, SOLENOID, AND CABLES
2004 SABERCAT 700 EFI LX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-059 | BATTERY,EL.START-12V W/FOIL(0645-197) | 1 | $99.95 | |
| 2 | 0645-588 | CAP,BATTERY(GREEN FOR 0645-197) | 1 | $1.78 | |
| 3 | 0645-152 | CLAMP, HOSE-BATTERY VENT | 1 | $2.47 | |
| 4 | 0645-263 | HOSE, BATTERY VENT-550MM | 1 | $3.44 | |
| 5 | 0645-151 | LABEL, WARNING-BATTERY | 1 | $10.97 | |
| 6 | 0645-082 | WRAP,BATTERY HEAT-6 X 11 | 1 | $6.34 | |
| 7 | 0645-427 | CABLE, BATT-SOL -17" | 1 | $48.95 | |
| 8 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 9 | 0645-327 | BOOT,TERMINAL-SOLENOID | 1 | $1.64 | |
| 10 | 0645-136 | CABLE,BATTERY TO GROUND-18.00 | 1 | $30.95 | |
| 11 | 0745-220 | SHIELD, HEAT-BTRY-ASSY(S-CAT) | 1 | $22.01 | |
| 12 | 0437-102 | KIT,SOLENOID-W/ MOUNT | 1 | $49.95 | |
| 13 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 14 | 0745-205 | TRAY,LRG BTRY-F2 L/C-PTD BLK | 1 | $63.95 | |
| 15 | 0645-243 | STRAP, BATTERY HOLDOWN-TOP | 1 | $16.49 | |
| 16 | 0645-311 | STRAP,BATTERY HOLDOWN-SIDE | 1 | $32.95 | |
| 17 | 0623-325 | NUT,WING - 1/4-20 NYLON SL | 1 | $2.06 | |
| 18 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 19 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 20 | 8011-039 | BOLT,CRG 1/4-20X.625 GR1 Z&Y | 1 | $0.65 | |
| 21 | 0745-204 | BRKT,MTG-LGE BTRY TRAY-PTD BLK | 1 | $24.95 | |
| 22 | 0645-428 | CABLE, SOL-STARTER-28" | 1 | $41.95 |
