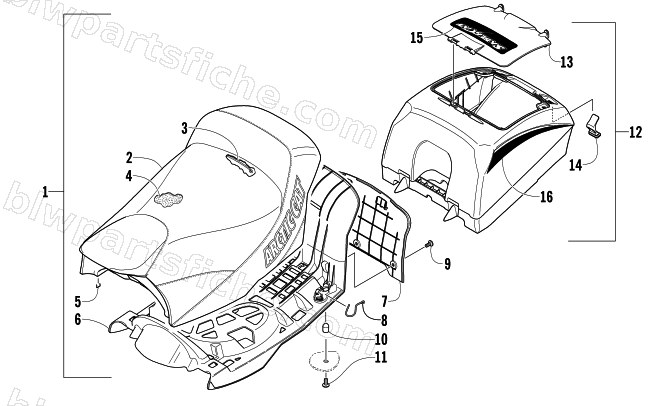

SEAT AND STORAGE BOX ASSEMBLY
2004 SABERCAT 700 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 7997-379 | SEAT, MFG ASSY (GRN S-CAT) | 1 | $724.95 | |
| 1 | 7997-167 | SEAT, MFG ASSY (SABERCAT RED) | 1 | $500.79 | |
| 2 | 2706-353 | COVER, SEAT-ASSY (GRN S-CAT) | 1 | $382.95 | |
| 2 | 2706-262 | COVER, SEAT (RED S-CAT) | 1 | $369.95 | |
| 4 | 0717-176 | FOAM, SEAT (85-90 ILD) .48@5.3 | 1 | $140.95 | |
| 5 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 6 | 3606-056 | SEAT BASE-STORAGE | 1 | $97.95 | |
| 7 | 3606-248 | PANEL, SEAT-REAR (SABERCAT) | 1 | $21.95 | |
| 8 | 1623-177 | CLIP,RETAINING SPRING-SEAT | 1 | $2.95 | |
| 9 | 1623-158 | SCREW,PLASTITE-TSPNH 1/4-10X.500 Z&BLK | 1 | $0.95 | |
| 10 | 1623-138 | LATCH, SEAT | 1 | $16.49 | |
| 11 | 8017-667 | SCREW,MACH-TSTRH 5/16-18 X .50 GR2 Z&Y | 1 | $3.16 | |
| 12 | 3606-074 | BOX, STORAGE-MFG ASSY | 1 | $260.95 | |
| 14 | 3606-357 | STRAP, HOLDDOWN-STORAGE | 1 | $3.44 | |
| 15 | 5611-521 | DECAL, COVER STORAGE(GRN) | 1 | $60.95 | |
| 15 | 5611-520 | DECAL, COVER STORAGE(RED) | 1 | $62.95 | |
| 16 | 5611-510 | DECAL, STORAGE-RH | 1 | $45.95 | |
| 16 | 5611-511 | DECAL, STORAGE-LH | 1 | $45.95 |
