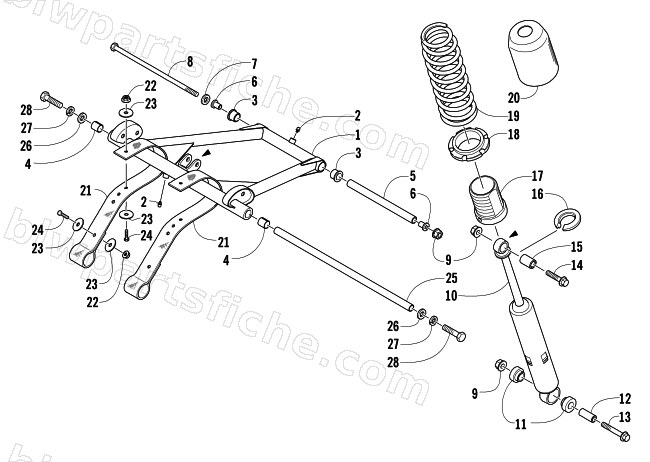

REAR SUSPENSION FRONT ARM ASSEMBLY
2004 T660 TURBO TRAIL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-335 | ARM, FRONT-FABR | 1 | $273.95 | |
| 2 | 0623-922 | FITTING,GREASE-PRESS FIT W/CHK BALL | 1 | $1.92 | |
| 3 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 4 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 6 | 0603-061 | AXLE,SERRATED | 1 | $1.92 | |
| 7 | 0623-664 | WASHER,FLAT 1.00X.390X.164 Z&Y | 1 | $1.23 | |
| 8 | 1623-037 | SCREW, CAP-HH 3/8-16X10 GD 8 Z&Y | 1 | $6.47 | |
| 9 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 10 | 1604-369 | SHOCK,FRONT ARM | 1 | $157.95 | |
| 11 | 1604-329 | AXLE,SHOCK PIVOT-98EXT | 1 | $39.95 | |
| 11 | 1604-384 | BUSHING, EYELET - ARVIN SHOCK | 1 | $3.99 | |
| 12 | 8020-228 | SCREW,CAP-HFH 3/8-16 X 2.25 G5 Z&Y | 1 | $2.75 | |
| 13 | 8020-226 | SCREW,CAP-HFH 3/8-16 X 1.75 Z&Y | 1 | $2.95 | |
| 14 | 0603-030 | AXLE,SERRATED | 1 | $1.37 | |
| 15 | 0604-590 | COVER,SUSPENSION SPRING (LONG) | 1 | $27.95 | |
| 16 | 2604-305 | STRAP, LIMITER-FRONT | 1 | $39.95 | |
| 16 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 17 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 17 | 0603-147 | SLEEVE,THREADED-SHOCK | 1 | $60.95 | |
| 18 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 18 | 0603-259 | NUT,RETAINER-SPRING | 1 | $5.65 | |
| 19 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 19 | 0603-860 | SPRING,COMPRESSION-110 LBS-PTD BLK | 1 | $93.95 | |
| 20 | 0114-163 | AXLE,INNER CARRIAGE | 1 | $56.95 | |
| 21 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 22 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 23 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 |
