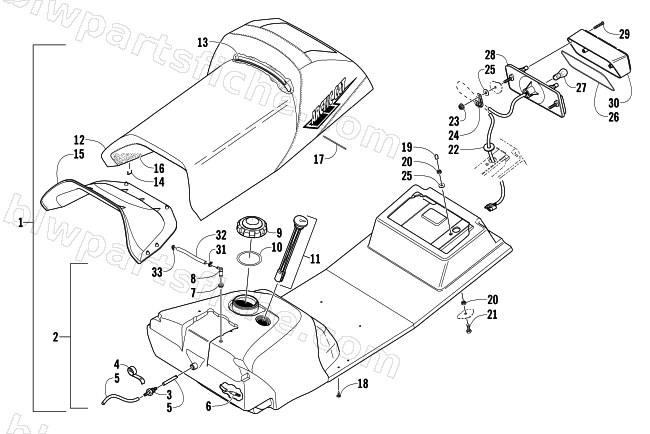

2004 Arctic Cat Z 370 LX — GAS TANK, SEAT, AND TAILLIGHT ASSEMBLY
2004 Z 370 LX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-535 | SEAT-S/P ASSY-04 Z370 | 1 | $912.95 | |
| 1 | 1718-537 | SEAT-S/P ASSY-04 Z370 | 1 | $1,260.95 | |
| 2 | 0770-653 | TANK,GAS-S/P ASSY | 1 | $414.95 | |
| 3 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 4 | 0670-289 | TAPE, TEFLON-ROLL | 1 | $6.34 | |
| 5 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 5 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 6 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 7 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 8 | 1670-494 | ELBOW, 90 DEG-FUEL TANK | 1 | $3.99 | |
| 9 | 0470-541 | CAP, FUEL - 3.5" | 1 | $46.95 | |
| 10 | 1670-228 | SEAL,GAS CAP | 1 | $26.95 | |
| 11 | 1670-241 | GAUGE, FUEL,W/GASKET - PRESS FIT | 1 | $102.95 | |
| 12 | 2706-260 | COVER, SEAT-W/DECAL-04 Z GREEN | 1 | $357.95 | |
| 12 | 2706-261 | COVER, SEAT-W/DECAL-04 Z RED | 1 | $369.95 | |
| 13 | 3606-363 | WIRE, SEAT-BENT | 1 | $3.44 | |
| 14 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 15 | 1606-126 | INSERT,SEAT FOAM | 1 | $90.95 | |
| 16 | 2706-196 | FOAM, SEAT-12 GAL(77-82IDL),48@5.4 | 1 | $244.95 | |
| 17 | 2606-943 | WIRE, SEAT (11.4)-BENT | 1 | $1.95 | |
| 18 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 20 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 21 | 8020-041 | SCREW,CAP-HFH 1/4-20 X 0.875 Z&Y | 1 | $6.47 | |
| 22 | 0617-136 | SEAL,FOAM-SEAT BASE | 1 | $2.06 | |
| 23 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 24 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 25 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 26 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 27 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 28 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 29 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 30 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 31 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 32 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 32 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 33 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 |
