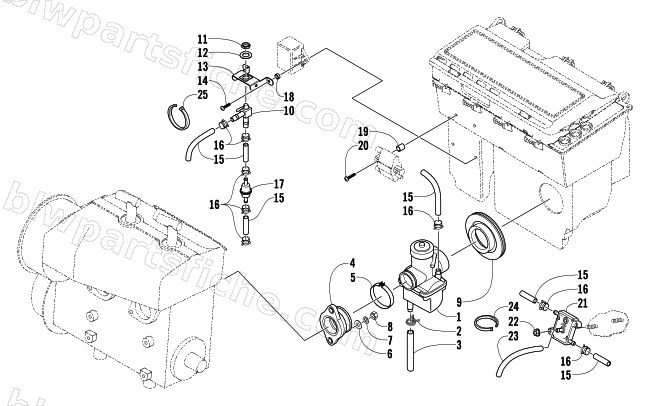

CARBURETOR AND FUEL PUMP ASSEMBLY
2004 Z 370
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-204 | CARB,VM32-304 | 1 | $493.95 | |
| 2 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 3 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 4 | 0115-544 | FLANGE,CARB VM32-454 | 1 | $71.95 | |
| 5 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 6 | 0423-472 | WASHER,FLAT M8X16X1.8 Z&Y | 1 | $1.23 | |
| 7 | 0423-467 | WASHER,LOCK-SL M8 Z&Y | 1 | $0.15 | |
| 8 | 8420-802 | NUT,HEX - M8 X 1.25 CL8 Z&Y | 1 | $0.41 | |
| 9 | 1670-267 | BOOT, CARB | 1 | $52.95 | |
| 10 | 0670-144 | VALVE,SHUT OFF-FUEL | 1 | $50.95 | |
| 11 | 0623-287 | NUT,JAM-9/16-18 UNF | 1 | $1.95 | |
| 12 | 0623-288 | WASHER,FLAT-9/16 ID | 1 | $2.95 | |
| 13 | 0770-614 | BRKT,MTG-FUEL SHUT OFF-PTD BLK | 1 | $16.95 | |
| 14 | 8017-402 | SCREW,MACH-TSTRH 10-24X1 GR2 Z&Y | 1 | $1.23 | |
| 15 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 15 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 16 | 1623-042 | CLAMP, 10 MM | 1 | $1.09 | |
| 17 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 18 | 0107-234 | BUSHING,TIGHTENER ARM | 1 | $16.95 | |
| 19 | 0670-210 | SPACER, CLAMP- 9mm | 1 | $4.40 | |
| 20 | 8017-406 | SCREW,MACH-TSTRH 10-24X1.75 GR2 Z&Y | 1 | $1.95 | |
| 21 | 0115-481 | FUEL PUMP (DF44-227) | 1 | $78.95 | |
| 22 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 23 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 24 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 25 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 |
