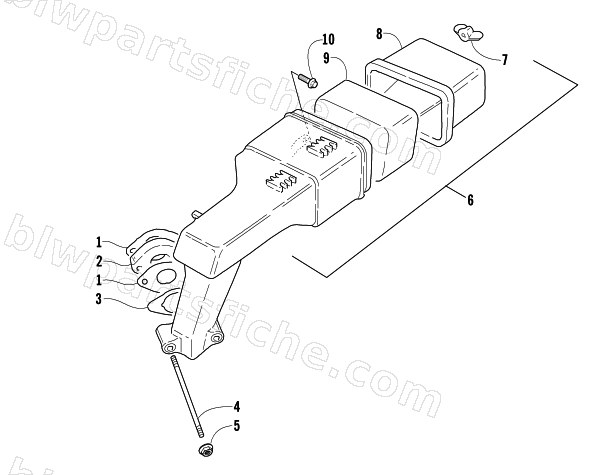

2004 Arctic Cat ZR 120 — AIR CLEANER ASSEMBLY
2004 ZR 120
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-282 | GASKET, CARBURETOR | 1 | $12.35 | |
| 2 | 0691-850 | INSULATOR, CARBURETOR | 1 | $19.25 | |
| 3 | 0693-287 | GASKET, AIR CLEANER | 1 | $9.59 | |
| 4 | 0694-039 | BOLT,STUD | 1 | $4.26 | |
| 5 | 3007-373 | NUT | 1 | $3.16 | |
| 6 | 0693-543 | CLEANER ASSY, AIR | 1 | $133.95 | |
| 7 | 0693-542 | NUT,6MM | 1 | $3.16 | |
| 8 | 0691-851 | COVER, CLEANER | 1 | $33.95 | |
| 9 | 0691-736 | FILTER,AIR CLEANER | 1 | $38.95 | |
| 10 | 0693-307 | BOLT,M6X16 | 1 | $3.16 |
