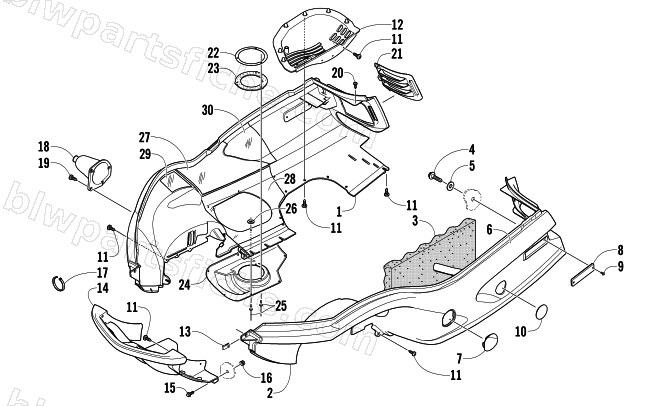

2004 Arctic Cat ZR 900 EFI SNO PRO — BELLY PAN AND FRONT BUMPER ASSEMBLY
2004 ZR 900 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2706-396 | BELLY PAN,RH-BLK ROUTED | 1 | $184.95 | |
| 2 | 2706-505 | BELLY PAN,LH-ROUTED | 1 | $184.95 | |
| 3 | 0617-449 | FOAM,BELLY PAN-LH | 1 | $38.95 | |
| 4 | 0623-647 | SCREW,SELF TAP-HWH 1/4X2.0 A Z&Y | 1 | $0.95 | |
| 5 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 6 | 5611-282 | DECAL,BELLY PAN-RED RH | 1 | $66.95 | |
| 6 | 5611-283 | DECAL,BELLY PAN-RED LH | 1 | $54.95 | |
| 6 | 5611-262 | DECAL,BELLY PAN-GRN RH | 1 | $322.95 | |
| 6 | 5611-263 | DECAL,BELLY PAN-GRN LH | 1 | $134.95 | |
| 7 | 1606-767 | PANEL, CLUTCH ACCESS-BLK | 1 | $33.95 | |
| 8 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 9 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 10 | 0623-600 | PLUG,BELLYPAN-2.00 | 1 | $4.82 | |
| 11 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 12 | 2706-395 | PROTECTOR,DROPCASE-PLASTIC-MACH | 1 | $97.95 | |
| 13 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 14 | 2606-224 | BUMPER,FR ROUTED | 1 | $152.95 | |
| 15 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 16 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 17 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 18 | 0605-332 | BOOT,STEERING-DRAG LINK-RH | 1 | $40.95 | |
| 18 | 0605-333 | BOOT,STEERING-DRAG LINK-LH | 1 | $28.95 | |
| 19 | 0623-564 | SCREW,TAPPING #10 X 1.00 HWH | 1 | $3.57 | |
| 20 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 21 | 1606-044 | LOUVER, AIR INTAKE-RH-BLK | 1 | $46.95 | |
| 21 | 1606-045 | LOUVER, AIR INTAKE-LH-BLK | 1 | $46.95 | |
| 22 | 0712-917 | PLATE,EXH-OUTLET SEAL-PTD BLK | 1 | $19.95 | |
| 23 | 1612-372 | SEAL, EXH,OUTLET | 1 | $17.87 | |
| 25 | 8060-510 | RIVET,BLIND-DH SS58 BLK | 1 | $0.68 | |
| 26 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 27 | 2606-376 | FOIL, PROTECTIVE,UPPER FRONT | 1 | $27.95 | |
| 28 | 2606-374 | FOIL, PROTECTIVE,LOWER REAR | 1 | $30.95 | |
| 29 | 2606-387 | FOIL,PROTECTIVE-LWR FRONT | 1 | $29.95 | |
| 30 | 2606-375 | FOIL, PROTECTIVE,UPPER REAR | 1 | $15.11 |
