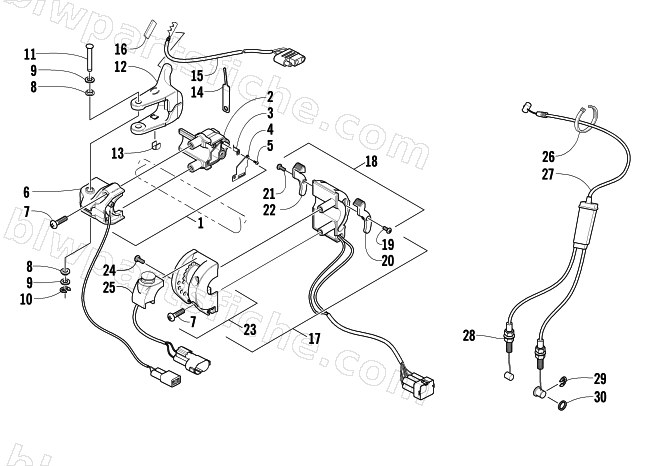

CONTROL ASSEMBLY
2004 ZR 900 EFI SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-574 | CONTROL,TH-AXLE SWITCH ASSY | 1 | $217.95 | |
| 2 | 0609-576 | HOUSING,HALF-TH CABLE | 1 | $47.95 | |
| 3 | 0609-611 | CLIP, RETAIN-TH CABLE SHORT | 1 | $8.95 | |
| 4 | 0609-615 | PLATE, COVER | 1 | $33.95 | |
| 5 | 0609-612 | SCREW, SELF-TAP PH-3MMX10MM | 1 | $3.16 | |
| 6 | 0609-575 | CONTROL,HALF-AXLE SWITCH ASSY | 1 | $129.95 | |
| 7 | 0609-604 | SCREW,PAN HEAD-5MM X 18MM | 1 | $1.95 | |
| 8 | 0609-501 | WASHER,SHOULDER-THROTTLE | 1 | $12.35 | |
| 9 | 0609-036 | WASHER,FLAT | 1 | $0.95 | |
| 10 | 0609-040 | E-RING .187 SHAFT | 1 | $1.92 | |
| 11 | 0609-577 | AXLE,LEVER-THROTTLE | 1 | $5.95 | |
| 12 | 0609-565 | LEVER,TH-35MM | 1 | $29.95 | |
| 13 | 0609-595 | CLIP,RETAINER-TW HARNESS | 1 | $2.47 | |
| 14 | 1639-963 | KIT, THROTTLE CABLE TOOL | 1 | $3.95 | |
| 15 | 0609-623 | ELEMENT,THUMBWARMER-H/M/L-34" PF | 1 | $65.95 | |
| 16 | 0617-248 | PAD, INSULATOR-THUMB WARMER | 1 | $1.37 | |
| 17 | 0609-547 | CONTROL,TH-E STOP H/M/L | 1 | $162.95 | |
| 18 | 0609-570 | CONTROL,HALF-H/M/L ASSY | 1 | $108.95 | |
| 19 | 0609-605 | SCREW,SELF-TAP PH-3MM X 12MM | 1 | $1.95 | |
| 20 | 0609-573 | KNOB,HW-LH | 1 | $10.97 | |
| 21 | 0609-606 | SCREW,SELF-TAP PH-3MM X 8MM | 1 | $1.95 | |
| 22 | 0609-572 | KNOB,TW-RH | 1 | $10.97 | |
| 23 | 0609-635 | CONTROL,HALF E-STOP ASSY | 1 | $75.95 | |
| 24 | 0609-607 | SCREW, PAN HEAD-4MM X 14MM | 1 | $1.95 | |
| 26 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 27 | 0687-152 | CABLE, THROTTLE - 800 EFI | 1 | $147.95 | |
| 28 | 0623-464 | NUT, LOCKING-THROTTLE CABLE | 1 | $0.26 | |
| 29 | 0124-057 | E-RING | 1 | $1.64 | |
| 30 | 0124-056 | WASHER | 1 | $13.73 |
