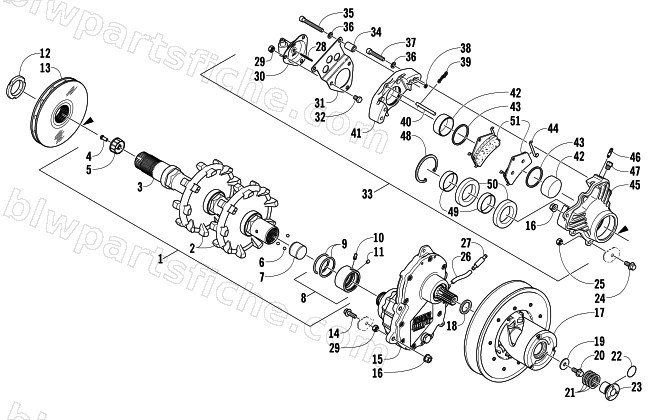

2004 Arctic Cat ZR 900 EFI SNO PRO — DRIVE TRAIN AND BRAKE ASSEMBLIES
2004 ZR 900 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0637-298 | UPDATE KIT,TRACK DRIVE/GEAR CASE BEARING | 1 | $580.95 | |
| 2 | 1602-583 | SPROCKET,DRIVE-9T-7.05 DIA 45 MM HEX | 1 | $88.95 | |
| 3 | 0702-676 | SHAFT, DRIVE-45MM HEX-ASSY | 1 | $1,153.95 | |
| 4 | 0120-247 | BUSHING,DRIVE-SPEEDOMETER | 1 | $5.65 | |
| 5 | 1602-353 | PLUG,SHAFT-DRIVE | 1 | $12.35 | |
| 6 | 1602-576 | BALL, SHAFT-LOCK | 1 | $0.85 | |
| 7 | 1602-599 | PLUG, DRIVE SHAFT | 1 | $6.95 | |
| 8 | 0702-581 | COLLAR,LOCK-DRIVE SHAFT-ASSY | 1 | $34.95 | |
| 9 | 1602-596 | O-RING-2-224 | 1 | $1.37 | |
| 10 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 11 | 8080-203 | SCREW,SET-HS 1/4-20 X 1/4 | 1 | $0.55 | |
| 12 | 1602-355 | NUT,RETAINING-SHAFT-1 -5/8-16 | 1 | $34.95 | |
| 13 | 1602-656 | BRAKE,DISC-ACT DRIVE | 1 | $267.95 | |
| 14 | 8020-133 | SCREW,CAP-HFH 5/16-18 X1.125 G5 Z&Y | 1 | $13.95 | |
| 15 | 0702-533 | GEARCASE,ACT DR-66T/54T 5PASSY | 1 | $1,181.95 | |
| 16 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 17 | 0726-257 | KIT,DRIVEN CLUTCH | 1 | $747.95 | |
| 18 | 0648-442 | WASHER,FLAT-1.188 X 1.730 X .030 | 1 | $10.97 | |
| 18 | 0648-443 | WASHER,FLAT-1.188 X 1.730 X .060 | 1 | $1.37 | |
| 20 | 8020-222 | SCREW,CAP-HFH 3/8-16 X 1.00 G5 Z&Y | 1 | $1.37 | |
| 21 | 0648-714 | WASHER, DRIVEN .090 THICK | 1 | $2.06 | |
| 21 | 0648-715 | WASHER, DRIVEN .030 THICK | 1 | $1.23 | |
| 21 | 0648-716 | WASHER, DRIVEN .060 THICK | 1 | $3.44 | |
| 22 | 0648-441 | O-RING,ADJUSTER SHEAVE (2-121) | 1 | $0.54 | |
| 24 | 8020-130 | SCREW,CAP-HFH 5/16-18 X0.75 G5 Z&Y | 1 | $0.95 | |
| 25 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 26 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 26 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 27 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 28 | 0602-154 | CABLE,DRIVE ADAPTOR | 1 | $12.35 | |
| 29 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 30 | 0620-285 | ADAPTER,DRIVE-SPEEDOMETER-CCW | 1 | $105.95 | |
| 31 | 0720-016 | BRKT,DRIVE ADAPTER-PTD BLK | 1 | $22.95 | |
| 32 | 8002-127 | SCREW,CAP-HH 5/16-18 X.50 G5 Z&Y | 1 | $0.40 | |
| 33 | 1602-357 | CALIPER,BRAKE-ASSY | 1 | $489.95 | |
| 34 | 1602-515 | SPACER,SPEEDO BRKT | 1 | $3.85 | |
| 35 | 1602-670 | BOLT,SHCS 5/16-18 UNC-2A 3.00 LG | 1 | $3.16 | |
| 36 | 0402-165 | WASHER-HYD BRAKE | 1 | $3.02 | |
| 37 | 1602-671 | BOLT,SHCS 5/16-18 UNC-2A 2.00 LG | 1 | $5.09 | |
| 38 | 0602-729 | O-RING,BRAKE HOUSING | 1 | $5.65 | |
| 39 | 1602-467 | CLIP,RETAINING-HAIRPIN | 1 | $6.06 | |
| 40 | 1602-464 | PIN,PAD RETAINER | 1 | $6.06 | |
| 42 | 1602-461 | PISTON,STAINLESS-1.93X.79 | 1 | $86.95 | |
| 43 | 1602-669 | O-RING,SQUARE-PISTON | 1 | $20.63 | |
| 44 | 1602-466 | CLIP, ANTI-RATTLE | 1 | $9.59 | |
| 46 | 1602-458 | FITTING,BLEED SCREW INSERT-1/4-28 | 1 | $4.26 | |
| 47 | 0602-590 | FITTING,ADAPTER-1/8 NPT/DBL FLARE | 1 | $5.45 | |
| 48 | 1602-456 | RING,RETAINING-2.98 | 1 | $27.95 | |
| 49 | 1602-463 | SLEEVE,SHAFT | 1 | $32.95 | |
| 50 | 2602-131 | BEARING,45MM X 68MM X 12MM | 1 | $57.95 | |
| 51 | 0702-563 | KIT,BRAKE PAD | 1 | $117.95 |
