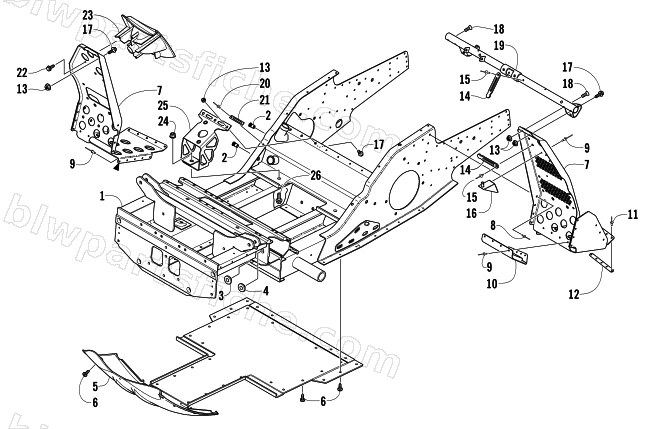

FRONT FRAME AND FOOTREST ASSEMBLY
2004 ZR 900 EFI SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-923 | CHASSIS, FRT END-ASSY-PTD BLK | 1 | $1,501.95 | |
| 2 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 3 | 0607-420 | INSERT,LOWER A-ARM MTG. | 1 | $2.47 | |
| 4 | 0607-421 | INSERT,UPPER A-ARM MTG. | 1 | $2.47 | |
| 5 | 1606-719 | BELLY PAN, CTR-BLK | 1 | $161.95 | |
| 6 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 7 | 1706-884 | FOOTREST, RH-PTD BLK(2606-444) | 1 | $130.95 | |
| 7 | 2706-113 | FOOTREST,W/HOLES-LH-PTD BLK | 1 | $130.95 | |
| 8 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 9 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 10 | 1706-886 | PLATE,BACK-FTREST-RH-BLK(2606-458) | 1 | $19.95 | |
| 10 | 1706-887 | PLATE,BACK-FTREST-LH-BLK(2606-459) | 1 | $19.95 | |
| 11 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 12 | 2706-110 | PLATE,BACKING-FOOTREST-PTD BLK | 1 | $6.95 | |
| 13 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 14 | 3606-173 | STRAP,HOLDDOWN-AIR SILENCER | 1 | $5.37 | |
| 15 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 16 | 0705-173 | BRKT, FASTENER-GUARD-PTD BLK | 1 | $20.95 | |
| 17 | 8020-039 | SCREW,CAP-HFH 1/4-20 X 0.625 Z&Y | 1 | $0.95 | |
| 18 | 8019-614 | SCREW,MACH-TSPNH 1/4-20 X 1 1/4 GR2 BLK | 1 | $0.95 | |
| 19 | 0705-940 | SUPPORT,STEERING-PTD BLK | 1 | $85.95 | |
| 20 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 21 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 22 | 0623-297 | SCREW,SELF TAP-HWH #8X3/4 TYPE A | 1 | $0.68 | |
| 23 | 1606-062 | CUP, RECOIL ROPE | 1 | $22.01 | |
| 24 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 25 | 0708-398 | BRKT, ENG MTG-L/W-PTD BLK | 1 | $33.95 | |
| 26 | 8020-130 | SCREW,CAP-HFH 5/16-18 X0.75 G5 Z&Y | 1 | $0.95 |
