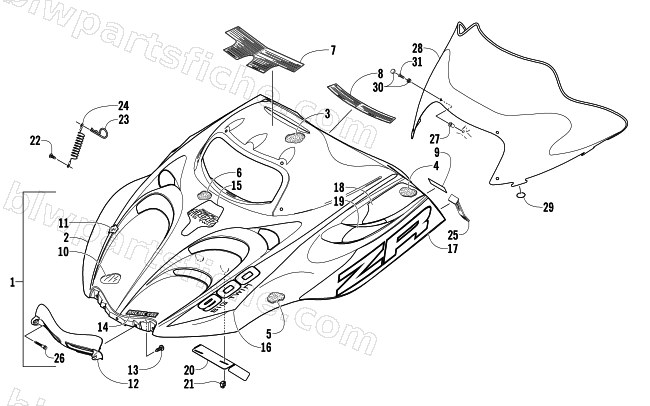

2004 Arctic Cat ZR 900 EFI SNO PRO — HOOD AND WINDSHIELD ASSEMBLY
2004 ZR 900 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-382 | HOOD,BLK/RED-W/DECAL | 1 | $1,201.95 | |
| 1 | 1718-381 | HOOD,BLK/GRN-W/DECAL-'04 ZR 900 | 1 | $1,201.95 | |
| 2 | 1718-054 | HOOD, W/O DECAL | 1 | $1,201.95 | |
| 3 | 0717-148 | FOAM, HOOD-MIDDLE UPR RH | 1 | $15.11 | |
| 3 | 0717-149 | FOAM, HOOD-MIDDLE UPR LH | 1 | $14.95 | |
| 4 | 0717-162 | FOAM, HOOD-REAR RH | 1 | $5.95 | |
| 4 | 0717-141 | FOAM, HOOD-REAR LH-00 ZR | 1 | $12.95 | |
| 5 | 0717-164 | FOAM, HOOD-UPR RH | 1 | $6.95 | |
| 5 | 0717-147 | FOAM, HOOD-UPR LH | 1 | $14.95 | |
| 6 | 0717-138 | FOAM, HOOD-MIDDLE-00 ZR | 1 | $5.95 | |
| 7 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 8 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 9 | 3611-509 | DECAL, WARNING-SEATING CAPACITY | 1 | $72.95 | |
| 10 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 10 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 11 | 2606-233 | FOIL, HOOD-UPR RH | 1 | $89.95 | |
| 12 | 1606-720 | HINGE, HOOD | 1 | $45.95 | |
| 13 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 14 | 5611-284 | DECAL,FIRE RED-"ARCTIC CAT" | 1 | $20.95 | |
| 14 | 3611-186 | DECAL, HOOD-"ARCTIC CAT"-GRN-CURVED | 1 | $21.95 | |
| 15 | 5611-272 | DECAL,HOOD-RED CREST | 1 | $42.95 | |
| 15 | 5611-252 | DECAL,HOOD-GRN CREST | 1 | $46.95 | |
| 16 | 5611-274 | DECAL,HOOD-RED FWD RH | 1 | $61.95 | |
| 16 | 5611-275 | DECAL,HOOD-RED FWD LH | 1 | $66.95 | |
| 16 | 5611-254 | DECAL,HOOD-GRN FWD RH | 1 | $246.95 | |
| 16 | 5611-255 | DECAL,HOOD-GRN FWD LH | 1 | $65.95 | |
| 17 | 5611-280 | DECAL,HOOD-RED LWR RH | 1 | $108.95 | |
| 17 | 5611-281 | DECAL,HOOD-RED LWR LH | 1 | $191.95 | |
| 17 | 5611-260 | DECAL,HOOD-GRN LWR RH | 1 | $252.95 | |
| 17 | 5611-261 | DECAL,HOOD-GRN LWR LH | 1 | $108.95 | |
| 18 | 5611-276 | DECAL,HOOD-RED UPR RH | 1 | $81.95 | |
| 18 | 5611-277 | DECAL,HOOD-RED UPR LH | 1 | $81.95 | |
| 18 | 5611-256 | DECAL,HOOD-GRN UPR RH | 1 | $183.95 | |
| 18 | 5611-257 | DECAL,HOOD-GRN UPR LH | 1 | $193.95 | |
| 19 | 5611-278 | DECAL,HOOD-RED CTR RH | 1 | $43.95 | |
| 19 | 5611-279 | DECAL,HOOD-RED CTR LH | 1 | $43.95 | |
| 19 | 5611-258 | DECAL.HOOD-GRN CTR RH | 1 | $59.95 | |
| 19 | 5611-259 | DECAL,HOOD-GRN CTR LH | 1 | $136.95 | |
| 20 | 2606-613 | AIR DEFLECTOR | 1 | $42.95 | |
| 21 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 24 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 25 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 26 | 1623-016 | SCREW, HEX DOME HEAD -1/4-20 x1.24 Z&Y | 1 | $27.95 | |
| 27 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 28 | 3606-067 | WINDSHIELD, LOW-BLK W/RED FADE | 1 | $203.95 | |
| 28 | 3606-066 | WINDSHIELD,LOW-BLK W/GRN FADE | 1 | $226.95 | |
| 29 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 30 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 31 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 |
