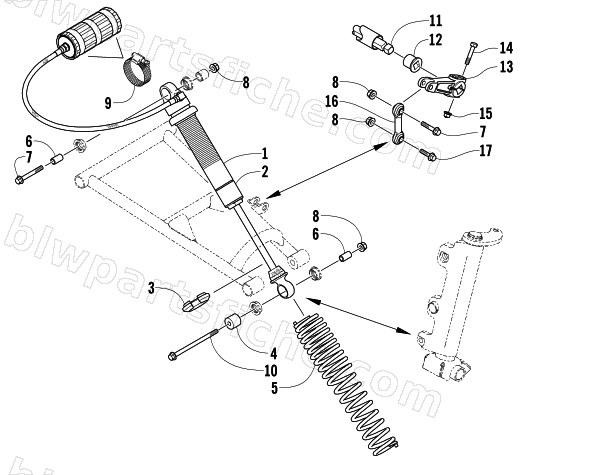

2004 Arctic Cat ZR 900 EFI SNO PRO — SHOCK ABSORBER AND SWAY BAR ASSEMBLY
2004 ZR 900 EFI SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-996 | SKI, SHOCK-REMOTE RESERVOIR-RH | 1 | $654.95 | |
| 1 | 0703-997 | SKI, SHOCK-REMOTE RESERVOIR-LH | 1 | $727.95 | |
| 2 | 1603-271 | SLEEVE,WEAR-FRT SHOCK | 1 | $20.95 | |
| 3 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 4 | 0603-648 | SPACER,SHOCK-MTG | 1 | $15.11 | |
| 5 | 1603-978 | SPRING,COMP-FRT-RED | 1 | $87.95 | |
| 5 | 1603-392 | SPRING,COMP-FRT-GRN | 1 | $74.95 | |
| 6 | 3604-594 | AXLE,SHOCK EYELET-10(ID)X20.7 MM | 1 | $4.40 | |
| 7 | 8020-226 | SCREW,CAP-HFH 3/8-16 X 1.75 Z&Y | 1 | $2.95 | |
| 8 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 9 | 0214-025 | CLAMP,HOSE #32 | 1 | $4.40 | |
| 10 | 8020-232 | SCREW,CAP-HFH 3/8-16 X 3.25 Z&Y | 1 | $5.65 | |
| 11 | 0703-202 | SWAY BAR, 7/16-PAINTED | 1 | $108.95 | |
| 12 | 0603-151 | BEARING,SWAY BAR-SQUARE | 1 | $23.39 | |
| 13 | 0603-917 | ARM, SWAY BAR-PLASTIC | 1 | $70.95 | |
| 14 | 8002-137 | SCREW,CAP-HH 5/16-18 X2.00 G5 Z&Y | 1 | $1.09 | |
| 15 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 16 | 1603-414 | LINK, SWAY BAR, FIXED (PLASTIC) | 1 | $37.95 | |
| 17 | 8020-225 | SCREW,CAP-HFH 3/8-16 X 1.50 Z&Y | 1 | $1.78 |
