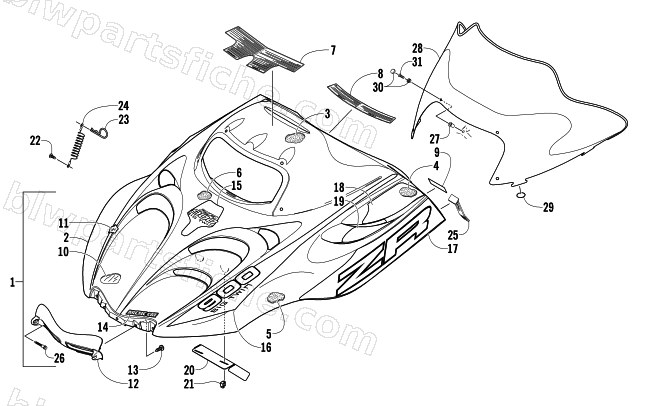

2004 Arctic Cat ZR 900 EFI — HOOD AND WINDSHIELD ASSEMBLY
2004 ZR 900 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-381 | HOOD,BLK/GRN-W/DECAL-'04 ZR 900 | 1 | $1,201.95 | |
| 1 | 1718-382 | HOOD,BLK/RED-W/DECAL | 1 | $1,201.95 | |
| 2 | 1718-054 | HOOD, W/O DECAL | 1 | $1,201.95 | |
| 3 | 0717-148 | FOAM, HOOD-MIDDLE UPR RH | 1 | $15.11 | |
| 3 | 0717-149 | FOAM, HOOD-MIDDLE UPR LH | 1 | $14.95 | |
| 4 | 0717-162 | FOAM, HOOD-REAR RH | 1 | $5.95 | |
| 4 | 0717-141 | FOAM, HOOD-REAR LH-00 ZR | 1 | $12.95 | |
| 5 | 0717-164 | FOAM, HOOD-UPR RH | 1 | $6.95 | |
| 5 | 0717-147 | FOAM, HOOD-UPR LH | 1 | $14.95 | |
| 6 | 0717-138 | FOAM, HOOD-MIDDLE-00 ZR | 1 | $5.95 | |
| 7 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 8 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 9 | 3611-509 | DECAL, WARNING-SEATING CAPACITY | 1 | $72.95 | |
| 10 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 10 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 11 | 2606-233 | FOIL, HOOD-UPR RH | 1 | $89.95 | |
| 12 | 1606-720 | HINGE, HOOD | 1 | $45.95 | |
| 13 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 14 | 3611-186 | DECAL, HOOD-"ARCTIC CAT"-GRN-CURVED | 1 | $21.95 | |
| 14 | 5611-284 | DECAL,FIRE RED-"ARCTIC CAT" | 1 | $20.95 | |
| 15 | 5611-252 | DECAL,HOOD-GRN CREST | 1 | $46.95 | |
| 15 | 5611-272 | DECAL,HOOD-RED CREST | 1 | $42.95 | |
| 16 | 5611-254 | DECAL,HOOD-GRN FWD RH | 1 | $246.95 | |
| 16 | 5611-255 | DECAL,HOOD-GRN FWD LH | 1 | $65.95 | |
| 16 | 5611-274 | DECAL,HOOD-RED FWD RH | 1 | $61.95 | |
| 16 | 5611-275 | DECAL,HOOD-RED FWD LH | 1 | $66.95 | |
| 17 | 5611-260 | DECAL,HOOD-GRN LWR RH | 1 | $252.95 | |
| 17 | 5611-261 | DECAL,HOOD-GRN LWR LH | 1 | $108.95 | |
| 17 | 5611-280 | DECAL,HOOD-RED LWR RH | 1 | $108.95 | |
| 17 | 5611-281 | DECAL,HOOD-RED LWR LH | 1 | $191.95 | |
| 18 | 5611-256 | DECAL,HOOD-GRN UPR RH | 1 | $183.95 | |
| 18 | 5611-257 | DECAL,HOOD-GRN UPR LH | 1 | $193.95 | |
| 18 | 5611-276 | DECAL,HOOD-RED UPR RH | 1 | $81.95 | |
| 18 | 5611-277 | DECAL,HOOD-RED UPR LH | 1 | $81.95 | |
| 19 | 5611-258 | DECAL.HOOD-GRN CTR RH | 1 | $59.95 | |
| 19 | 5611-259 | DECAL,HOOD-GRN CTR LH | 1 | $136.95 | |
| 19 | 5611-278 | DECAL,HOOD-RED CTR RH | 1 | $43.95 | |
| 19 | 5611-279 | DECAL,HOOD-RED CTR LH | 1 | $43.95 | |
| 20 | 2606-613 | AIR DEFLECTOR | 1 | $42.95 | |
| 21 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 24 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 25 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 26 | 1623-016 | SCREW, HEX DOME HEAD -1/4-20 x1.24 Z&Y | 1 | $27.95 | |
| 27 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 28 | 3606-066 | WINDSHIELD,LOW-BLK W/GRN FADE | 1 | $226.95 | |
| 28 | 3606-067 | WINDSHIELD, LOW-BLK W/RED FADE | 1 | $203.95 | |
| 29 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 30 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 31 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 |
