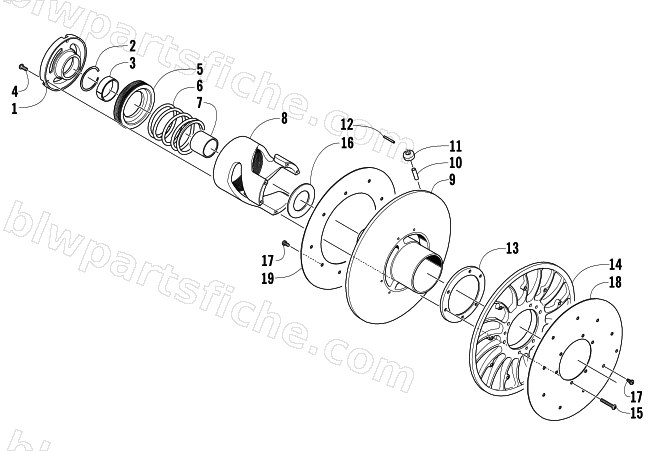

DRIVEN CLUTCH
2004 ZR 900 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0726-257 | KIT,DRIVEN CLUTCH | 1 | $747.95 | |
| 1 | 0748-595 | COVER,CAM-DRVN W/BEARING | 1 | $128.95 | |
| 2 | 0648-433 | RING,SNAP-1 3/4 VH175 | 1 | $3.02 | |
| 3 | 0648-009 | BEARING,DRIVEN CLUTCH 24DU08 | 1 | $19.25 | |
| 4 | 8019-397 | SCREW,MACH-TSPNH 10-24 X 1/2 GR2 Z&Y | 1 | $0.95 | |
| 5 | 0648-761 | ADJUSTER,SPRING-DRVN | 1 | $30.95 | |
| 6 | 0648-693 | SPRING,DRIVEN-110/260 LBS (WHITE) | 1 | $124.95 | |
| 7 | 0648-453 | SEAT,SPRING-DRVN | 1 | $7.03 | |
| 8 | 0648-694 | CAM, DRIVEN 50/36-3 1/2R | 1 | $133.79 | |
| 8 | 0648-689 | CAM, DRIVEN 42/36 | 1 | $239.95 | |
| 9 | 0726-258 | KIT,DRIVEN STATIONARY SHEAVE | 1 | $255.95 | |
| 10 | 0648-097 | PIN,CAM ROLLER | 1 | $2.88 | |
| 11 | 0648-139 | ROLLER,DRIVEN CLUTCH | 1 | $12.35 | |
| 12 | 8070-224 | PIN,SPRING-1/8 X 1 SLOTTED Z&Y | 1 | $0.40 | |
| 13 | 0648-688 | RETAINER, CAM-DRIVEN CLUTCH | 1 | $43.95 | |
| 15 | 1623-517 | SCREW,MACH-TSBH 10-24X1.25 W/2353 | 1 | $3.80 | |
| 16 | 0648-692 | SPACER, ACT DRIVEN | 1 | $29.95 | |
| 17 | 0623-914 | SCREW,SELF TAP THD LK-TSPNH 10-24X.375 | 1 | $0.26 | |
| 18 | 0648-654 | COVER,MOVEABLE SHEAVE | 1 | $26.95 | |
| 19 | 0648-653 | COVER,STATIONARY SHEAVE | 1 | $27.95 |
