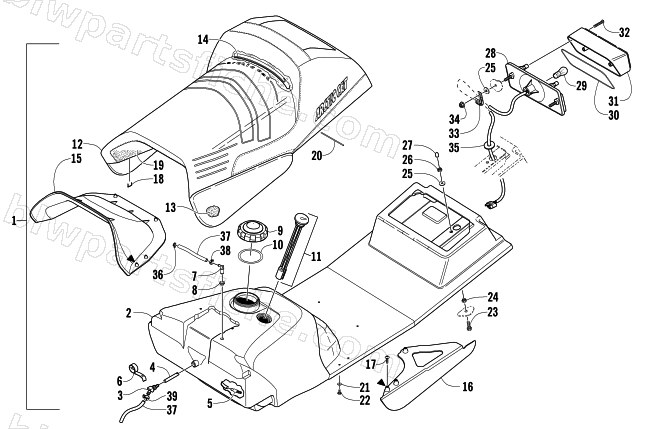

2004 Arctic Cat ZR 900 — GAS TANK, SEAT, AND TAILLIGHT ASSEMBLY
2004 ZR 900
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-674 | SEAT, S/P ASSY-04 900 ZR GR/BL | 1 | $973.95 | |
| 1 | 1718-675 | SEAT, S/P ASSY-04 900 ZR RED/BL | 1 | $981.95 | |
| 2 | 0770-607 | TANK,GAS-03 ZR 900-SP ASSY | 1 | $427.95 | |
| 10 | 1670-228 | SEAL,GAS CAP | 1 | $26.95 | |
| 11 | 1670-241 | GAUGE, FUEL,W/GASKET - PRESS FIT | 1 | $102.95 | |
| 12 | 2706-267 | COVER,SEAT-W/GRN DECAL | 1 | $387.95 | |
| 12 | 2706-268 | COVER,SEAT-W/RED DECAL | 1 | $361.95 | |
| 13 | 0617-417 | FOAM, PAD-TUNNEL-02 TRIPLES | 1 | $10.95 | |
| 14 | 3606-363 | WIRE, SEAT-BENT | 1 | $3.44 | |
| 15 | 1606-126 | INSERT,SEAT FOAM | 1 | $90.95 | |
| 16 | 1606-518 | INSERT, SEAT PAD-RH-99 ZR | 1 | $62.95 | |
| 16 | 1606-519 | INSERT, SEAT PAD-LH-99 ZR | 1 | $102.95 | |
| 17 | 0623-783 | SCREW, ST-PAN HD-12 X 1 1/2-TYPE A Z&Y | 1 | $0.95 | |
| 18 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 19 | 2706-196 | FOAM, SEAT-12 GAL(77-82IDL),48@5.4 | 1 | $244.95 | |
| 20 | 2606-943 | WIRE, SEAT (11.4)-BENT | 1 | $1.95 | |
| 21 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 22 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 23 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 24 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 25 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 26 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 28 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 29 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 30 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 31 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 32 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 33 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 34 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 35 | 0617-136 | SEAL,FOAM-SEAT BASE | 1 | $2.06 | |
| 36 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 37 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 37 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 38 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 39 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 |
