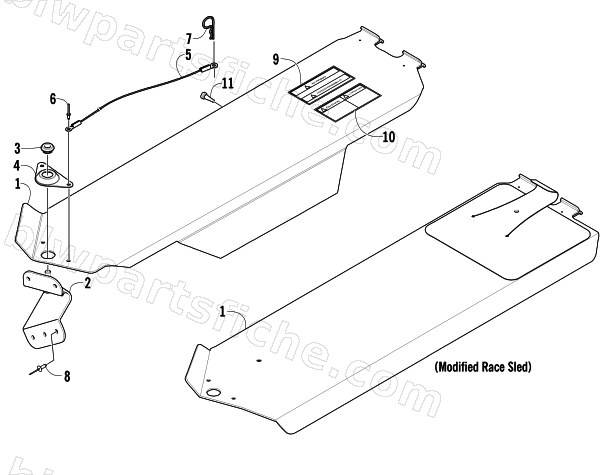

2005 Arctic Cat AC 440 SNO PRO — BELT GUARD ASSEMBLY
2005 AC 440 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-976 | GUARD,CLUTCH-FABR | 1 | $79.95 | |
| 2 | 0707-992 | BRKT,MTG-CLUTCH GUARD-WELD'T | 1 | $60.95 | |
| 3 | 0607-549 | BUSHING, BELT GUARD | 1 | $3.02 | |
| 4 | 0607-550 | PLATE, BUSHING-BELT GUARD-PTD BLK | 1 | $12.95 | |
| 5 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 6 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 7 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 8 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 9 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 10 | 1611-582 | DECAL,CAUTION-JETTING/STORAGE | 1 | $13.73 | |
| 11 | 3606-178 | BUMPER,RUBBER | 1 | $2.88 |
