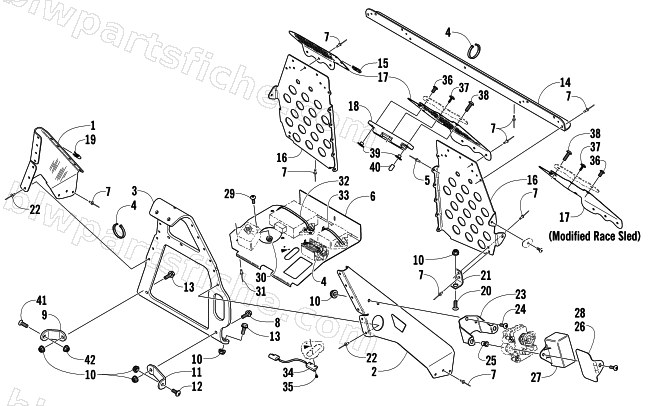

2005 Arctic Cat AC 440 SNO PRO — FOOTREST AND STEERING SUPPORT ASSEMBLY
2005 AC 440 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-914 | SUPPORT,STEERING-RH-PTD BLK | 1 | $92.95 | |
| 2 | 0707-915 | SUPPORT,STEERING-LH-PTD BLK | 1 | $92.95 | |
| 3 | 0707-996 | SUPPORT,STEERING-FRT-PTD BLK | 1 | $306.95 | |
| 4 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 5 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 6 | 3606-491 | PLATE,ELECTRICAL | 1 | $55.95 | |
| 7 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 8 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 9 | 3706-124 | SUPPORT,SIDE PLATE-PTD BLK | 1 | $22.01 | |
| 10 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 11 | 0607-779 | SUPPORT,SIDE PLATE-LH | 1 | $17.95 | |
| 12 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 13 | 8020-041 | SCREW,CAP-HFH 1/4-20 X 0.875 Z&Y | 1 | $6.47 | |
| 14 | 0707-919 | SUPPORT,FOOTREST-PTD BLK | 1 | $36.95 | |
| 15 | 1623-052 | NUT,U | 1 | $0.95 | |
| 16 | 3706-112 | FOOTREST,RH-PTD BLK | 1 | $112.95 | |
| 16 | 3706-113 | FOOTREST,LH-PTD BLK | 1 | $112.95 | |
| 17 | 3706-034 | SUPPORT,CONSOLE-RH PTD BLK | 1 | $67.95 | |
| 17 | 3706-035 | SUPPORT,CONSOLE-LH PTD BLK | 1 | $58.95 | |
| 18 | 3606-968 | MOUNT,CUTCH GUARD-PLASTIC-MACH | 1 | $26.95 | |
| 19 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 20 | 0623-962 | SCREW,MACH HSFH 1/4-20X.75 Z&Y | 1 | $1.09 | |
| 21 | 2706-696 | SUPPORT,GUSSET-FOOTREST-PTD | 1 | $15.11 | |
| 22 | 1623-206 | RIVET,3/16 HUCK-M9 | 1 | $2.06 | |
| 23 | 3606-094 | PLATE,MTG-SERVO MOTOR | 1 | $58.95 | |
| 24 | 8017-579 | SCREW,MACH-TSTRH 1/4-20X.625 G2 Z&Y | 1 | $6.83 | |
| 25 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 26 | 4606-130 | PLATE,SERVO COVER | 1 | $64.95 | |
| 28 | 8017-584 | SCREW,MACH-TSTRH 1/4-20 X 1 1/4 GR2 Z&Y | 1 | $1.23 | |
| 29 | 8017-577 | SCREW,MACH-TSTRH 1/4-20 X 1/2 GR2 Z&Y | 1 | $1.23 | |
| 30 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 31 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 32 | 0623-144 | TIE,CABLE-17.5 LONG | 1 | $0.54 | |
| 33 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 34 | 0630-184 | SENSOR,SPEEDO-ASSY | 1 | $55.95 | |
| 35 | 0623-462 | SCREW,TAPTITE-PHPNH 6-32X1/4 W Z&C | 1 | $0.35 | |
| 37 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 38 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 39 | 1623-413 | NUT,T-1/4-20 THDS X .250 LG | 1 | $1.95 | |
| 41 | 1623-419 | SCREW,MACH-HSFH 5/16-18X1.00 | 1 | $1.95 | |
| 42 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 |
