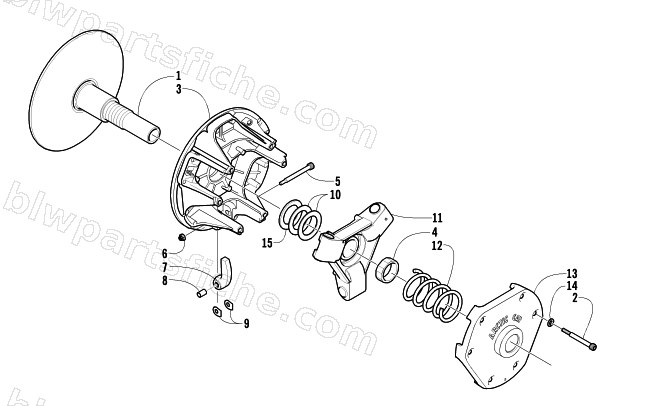

2005 Arctic Cat AC SNO PRO MOD — DRIVE CLUTCH
2005 AC SNO PRO MOD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0746-148 | CLUTCH,DRIVE-UNCALIBRATED(05 MOD) | 1 | $655.95 | |
| 1 | 0646-362 | SHEAVE,STATIONARY-MACH-SHALLOW BORE | 1 | $282.95 | |
| 2 | 1623-442 | SCREW, CAP-HH 1/4-20X2.50 GD 8 | 1 | $1.23 | |
| 4 | 0646-140 | NUT,JAM-SPIDER | 1 | $17.95 | |
| 5 | 0646-295 | PIN, CAM-ARM | 1 | $15.11 | |
| 6 | 0623-392 | NUT,FLEX LOCK 10-24 | 1 | $1.50 | |
| 9 | 0646-101 | WASHER,STEEL-CLUTCH | 1 | $0.95 | |
| 10 | 0646-265 | WASHER,SPACER-CLUTCH .060 (BLACK) | 1 | $3.16 | |
| 11 | 0746-118 | SPIDER, ASSY-MACH | 1 | $283.95 | |
| 13 | 0746-113 | COVER, DRIVE CLUTCH-ASSY (6 POST) | 1 | $99.95 | |
| 14 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 15 | 0646-318 | SPACER,CLUTCH-SPIDER | 1 | $23.95 |
