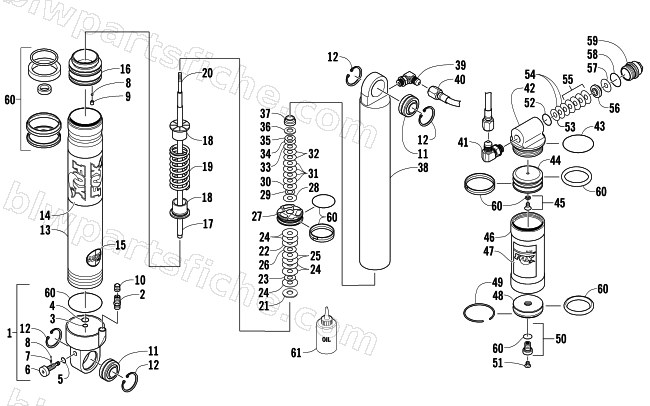

2005 Arctic Cat AC SNO PRO MOD — FRONT SUSPENSION SHOCK ABSORBER
2005 AC SNO PRO MOD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1703-790 | SHOCK,SKI-RH | 1 | $1,255.95 | |
| 0 | 1703-791 | SHOCK,SKI-LH | 1 | $1,255.95 | |
| 1 | 2603-512 | CAP,AIR SLEEVE-W/GROOVES 270 DEG RH | 1 | $307.95 | |
| 1 | 2603-513 | CAP,AIR SLEEVE-W/GROOVES 90 DEG LH | 1 | $277.95 | |
| 2 | 2603-326 | VALVE,AIR-ASSY - (FOX) | 1 | $24.95 | |
| 3 | 2603-506 | O-RING,.050 CS X .154 ID | 1 | $12.95 | |
| 4 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 5 | 2603-503 | O-RING,.070 CS X .301 ID | 1 | $4.95 | |
| 6 | 2603-514 | KNOB,DAMPING ADJUST-.498 SHAFT,1.310 TLG | 1 | $101.95 | |
| 7 | 2603-529 | SPRING,REBOUND DETENT | 1 | $8.95 | |
| 8 | 1604-315 | BALL, BLEED | 1 | $4.95 | |
| 9 | 1603-940 | SCREW-SET,8-32X.250 | 1 | $1.95 | |
| 10 | 2603-327 | CAP,VALVE-AIR - (FOX) | 1 | $12.35 | |
| 11 | 1604-664 | BEARING,SPHERICAL | 1 | $46.95 | |
| 12 | 2604-714 | RETAINING RING,SNAP-SS INTERNAL | 1 | $5.95 | |
| 13 | 2603-411 | SLEEVE,AIR-ASSY-8.915"-(FLOAT) | 1 | $332.95 | |
| 14 | 2603-509 | DECAL,FOX FLOAT SHOX-05 | 1 | $43.95 | |
| 15 | 2603-510 | DECAL,MAXIMUM PRESSURE WARNING-1.15 OD | 1 | $24.95 | |
| 16 | 2603-524 | BEARING,.498 ASSY-.645 DEEP NEGATIVE | 1 | $152.95 | |
| 17 | 2603-523 | SHAFT,ASSY-.180IDX.498OD-10.425" | 1 | $164.95 | |
| 18 | 2603-522 | GUIDE,SPRING-1.15OD X .800 TLG | 1 | $89.95 | |
| 19 | 2603-507 | SPRING, 2.500TLG X .830ID X 76 LB/IN | 1 | $25.95 | |
| 20 | 2603-516 | ROD,DAMPING ADJUST-.168 OD X 9.085" | 1 | $93.95 | |
| 21 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 22 | 0603-348 | VALVE,1.300X.006(3/8ID) | 1 | $13.95 | |
| 23 | 0603-337 | VALVE, .900X.008(3/8ID) | 1 | $12.95 | |
| 24 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 25 | 0603-350 | VALVE,1.300X.010(3/8ID) | 1 | $17.95 | |
| 26 | 0603-893 | VALVE, SHOCK 1.00X.004(040-04-100) | 1 | $7.95 | |
| 27 | 2603-531 | PISTON,DAMPING-1.459 BORE-NO BLEED | 1 | $126.95 | |
| 28 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 29 | 2603-045 | VALVE,SHOCK- .700 DIA X .010 | 1 | $5.95 | |
| 30 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 31 | 0603-888 | VALVE, SHOCK 1.100 X.015 | 1 | $6.89 | |
| 32 | 0603-887 | VALVE, SHOCK 1.000 X.015 | 1 | $6.95 | |
| 33 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 34 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 35 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 36 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 37 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 38 | 2603-508 | BODY,FLOAT-W/GROOVES-9.225" | 1 | $296.95 | |
| 39 | 2604-950 | FITTING,90 DEG 1/8-27 HIGH FLOW | 1 | $25.95 | |
| 40 | 2603-505 | HOSE, -5 FEMALE SWIVEL-11.00" | 1 | $200.95 | |
| 41 | 2604-943 | FITTING,ELBOW-90 DEG | 1 | $36.95 | |
| 42 | 2603-528 | HOUSING,1.834 BORE 7/16-20-DAMP ADJ ASSY | 1 | $255.95 | |
| 43 | 2603-504 | O-RING,.103 CS X 1.737 ID | 1 | $13.95 | |
| 44 | 2604-969 | PISTON,INTERNAL FLOATING-ASSY | 1 | $93.95 | |
| 45 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 46 | 2603-515 | RESERVOIR,1.834 BORE X 4.00 TLG | 1 | $164.95 | |
| 47 | 2603-584 | DECAL,FOX FLOAT SHOX-05 RESERVOIR | 1 | $22.95 | |
| 48 | 2603-525 | END CAP,RESERVOIR-ASSY 1.834 BORE | 1 | $76.95 | |
| 49 | 0604-992 | RETAINER, .062X1.850 ID ENDCAP | 1 | $6.06 | |
| 50 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 51 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 52 | 0603-975 | RING, .070 X .801 | 1 | $0.65 | |
| 53 | 2603-499 | VALVE,SHOCK-.500 X.006(1/4ID) | 1 | $18.95 | |
| 54 | 2603-500 | VALVE,SHOCK-.600 X.010(1/4ID) | 1 | $14.95 | |
| 55 | 2603-501 | VALVE,SHOCK-.700 X.010(1/4ID) | 1 | $13.95 | |
| 56 | 2603-526 | PISTON,CONCENTRIC ADJ-DAMP ADJ ASSY | 1 | $101.95 | |
| 57 | 0603-331 | VALVE, .700X.008(3/8ID) | 1 | $6.95 | |
| 58 | 2603-502 | O-RING,.070 CS X .989 ID | 1 | $6.95 | |
| 59 | 2603-527 | CARTRIDGE,SINGLE ADJ-DAMP ADJ ASSY | 1 | $112.95 | |
| 60 | 2603-498 | REBUILD KIT,FLOAT W/RESERVOIR | 1 | $178.95 | |
| 61 | 4639-369 | S/M SYN SHOCK OIL MED/LT WT-1 QUART | 1 | $27.99 |
