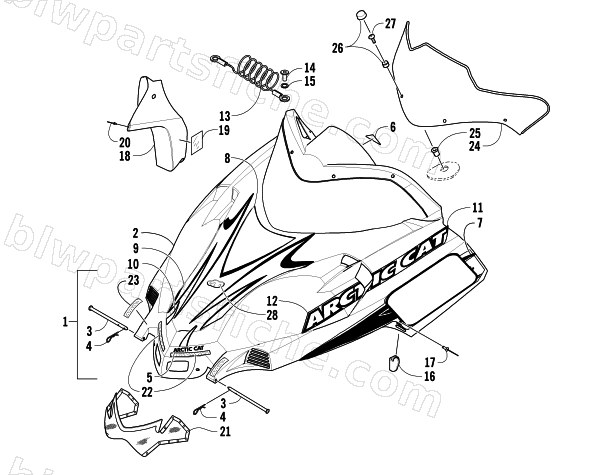

HOOD AND WINDSHIELD ASSEMBLY
2005 AC SNO PRO MOD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-853 | HOOD,W/DECALS-ASSY | 1 | $1,264.95 | |
| 2 | 2706-638 | HOOD - PTD GRN | 1 | $827.95 | |
| 3 | 1623-026 | PIN,CLEVIS-1/4 | 1 | $33.95 | |
| 4 | 0623-847 | CLIP, HAIRPIN | 1 | $0.95 | |
| 5 | 3611-187 | DECAL, HOOD-"ARCTIC CAT"-BLK | 1 | $26.95 | |
| 7 | 6611-624 | DECAL,HOOD-LWR RH | 1 | $104.95 | |
| 7 | 6611-625 | DECAL,HOOD-LWR LH | 1 | $134.95 | |
| 8 | 6611-615 | DECAL,COVER-CREST | 1 | $42.95 | |
| 9 | 6611-616 | DECAL,COVER-SIDE RH | 1 | $85.95 | |
| 9 | 6611-617 | DECAL,COVER-SIDE LH | 1 | $27.95 | |
| 10 | 6611-618 | DECAL,COVER-FWD RH | 1 | $22.01 | |
| 10 | 6611-619 | DECAL,COVER-FWD LH | 1 | $102.95 | |
| 11 | 7611-026 | DECAL,HOOD-VENT REAR RH | 1 | $45.95 | |
| 11 | 7611-027 | DECAL,HOOD-VENT REAR LH | 1 | $49.95 | |
| 12 | 7611-028 | DECAL,HOOD-VENT FORWARD RH | 1 | $45.95 | |
| 12 | 7611-029 | DECAL,HOOD-VENT FORWARD LH | 1 | $45.95 | |
| 13 | 2606-726 | CABLE,HOOD-17.00 | 1 | $20.63 | |
| 14 | 8060-628 | RIVET,BLIND-DH AA66 BLK | 1 | $1.23 | |
| 15 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 16 | 2606-096 | HOLDDOWN,HOOD STRAP-SIDE RH | 1 | $30.95 | |
| 16 | 1606-441 | HOLDDOWN,HOOD STRAP-SIDE ('98 440 PRO) | 1 | $13.73 | |
| 17 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 18 | 3606-030 | DUCT, BRAKE-PLASTIC | 1 | $94.95 | |
| 19 | 2606-556 | FOIL, PROTECTIVE,3" X 6" | 1 | $2.61 | |
| 20 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 21 | 3706-081 | SCREEN,HOOD-ASSY (18snaps) | 1 | $144.95 | |
| 22 | 2706-458 | VELCRO,HOOK-5/8"X10FT | 1 | $58.95 | |
| 23 | 6990-266 | VELCRO,HOOK- ROLL-10 FT | 1 | $13.95 | |
| 24 | 3606-842 | WINDSHIELD,LOW-RACE | 1 | $94.95 | |
| 25 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 26 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 27 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 28 | 2606-577 | FOIL, PROTECTIVE,6" X 12" | 1 | $0.00 |
