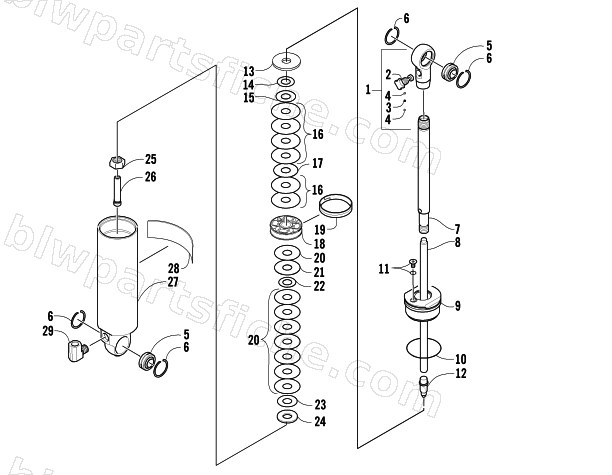

REAR SUSPENSION REAR ARM SHOCK ABSORBER

2005 AC SNO PRO MOD

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
0	1704-350	SHOCK,REAR ARM	1	$923.95
0	3639-107	REBUILD, KIT- FOX REAR SUSP-CROSSLINK	1	$93.95
1	2604-961	EYELET,W/REBOUND ADJUST-ASSY	1	$324.95
2	2604-958	KNOB,DAMPING ADJUST-.620 SHAFT,1.150 TLG	1	$82.95
3	2604-960	SPRING,.125TLG X .125OD X 50 LB/IN	1	$10.95
4	1604-315	BALL, BLEED	1	$4.95
5	1604-664	BEARING,SPHERICAL	1	$46.95
6	2604-714	RETAINING RING,SNAP-SS INTERNAL	1	$5.95
7	2604-955	SHAFT,.187ID X .620OD X 7.565 LGTH	1	$184.95
8	2604-954	ROD,DAMPING ADJUST-.175 OD X 5.675"	1	$109.95
9	2604-956	BEARING ASSY,1.834 BORE,.620SHAFT-1.210	1	$248.95
11	2604-530	SCREW,MACH-HSFH 10-24X.375 SS-ASSY	1	$3.95
12	2604-953	NEEDLE,DAMPING ADJUST-W/O-RING	1	$43.95
13	2604-449	WASHER, TOPOUT-1.570OD X .500ID X .128TH	1	$13.73
14	2604-480	VALVE,.950 OD X .504 ID X .010 TH	1	$13.95
15	2604-484	VALVE,1.100 OD X .504 ID X .006 TH	1	$6.95
16	2604-503	VALVE,1.600 OD X .504 ID X .012 TH	1	$12.95
17	2604-490	VALVE,1.350 OD X .504 ID X .006 TH	1	$10.95
18	2604-673	PISTON,DAMPING-NO BLEED 1.834 BORE-0/0	1	$98.95
20	2604-499	VALVE,1.425 OD X .504 ID X .015 TH	1	$6.95
21	2604-496	VALVE,1.425 OD X .504 ID X .008 TH	1	$12.95
22	2604-478	VALVE,.950 OD X .504 ID X .006 TH	1	$6.95
23	2604-488	VALVE,1.100 OD X .504 ID X .015 TH	1	$6.95
24	2603-354	WASHER,TOP-OUT-1.125OD X .503ID X .093TH	1	$10.95
25	2604-448	NUT,PISTON	1	$17.95
26	2604-674	JET,DAMPING ADJUST-.122IDX1.405TLG.620SH	1	$54.95
27	2604-957	BODY,ALUM-IMP EXTR W/GROOVES	1	$259.95
28	1603-922	DECAL,SHOCK-4.88X1.5	1	$22.01
29	2604-950	FITTING,90 DEG 1/8-27 HIGH FLOW	1	$25.95
