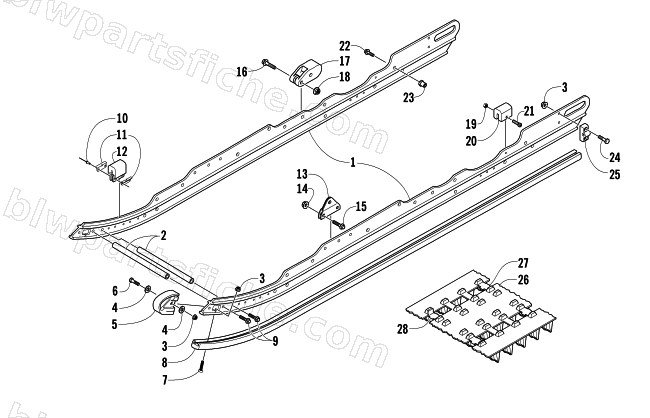

2005 Arctic Cat BEARCAT 570 — SLIDE RAIL AND TRACK ASSEMBLY
2005 BEARCAT 570
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2604-818 | RAIL,SUSP-156" STAMPED-FORMED | 1 | $253.95 | |
| 2 | 0604-426 | AXLE, XBRC-.625X8.750 (5/16-18) | 1 | $34.95 | |
| 3 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 4 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 5 | 1604-137 | NOSEPIECE,RAIL-BLUNT | 1 | $6.75 | |
| 6 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 7 | 0123-859 | SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z&Y | 1 | $1.09 | |
| 8 | 2604-799 | WEARSTRIP,162" SLIDE RAIL-BLK | 1 | $38.95 | |
| 9 | 8020-134 | SCREW,CAP-HFH 5/16-18 X 1.25 G5 Z&Y | 1 | $1.50 | |
| 10 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 11 | 0604-967 | BRACKET,RETAINING-SHOCK PAD | 1 | $3.57 | |
| 12 | 0604-918 | PAD,SHOCK-RUBBER | 1 | $13.73 | |
| 13 | 0704-395 | BRKT,MTG-FRONT ARM-PTD BLK | 1 | $20.63 | |
| 14 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 15 | 8020-132 | SCREW,CAP-HFH 5/16-18 X1.00 G5 Z&Y | 1 | $1.95 | |
| 16 | 8020-227 | SCREW,CAP-HFH 3/8-16 X 2.00 Z&Y | 1 | $2.47 | |
| 17 | 1604-413 | BLOCK,SPRING TENSION | 1 | $22.01 | |
| 18 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 19 | 8041-246 | NUT,HEX THIN LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 20 | 1604-429 | PAD,SHOCK-RUBBER | 1 | $6.75 | |
| 21 | 8017-405 | SCREW,MACH-TSTRH 10-24X1.50 GR2 Z&Y | 1 | $0.95 | |
| 22 | 8020-222 | SCREW,CAP-HFH 3/8-16 X 1.00 G5 Z&Y | 1 | $1.37 | |
| 23 | 2604-562 | BUSHING, STOP-REAR ARM | 1 | $5.51 | |
| 24 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 25 | 0704-352 | ADJUSTER,TRACK-MACH. | 1 | $24.77 | |
| 26 | 2602-517 | TRACK,15X156X1 | 1 | $1,496.95 | |
| 27 | 2602-384 | CLIP,WEAR | 1 | $3.57 | |
| 28 | 2602-383 | CLIP,GUIDE | 1 | $4.26 |
