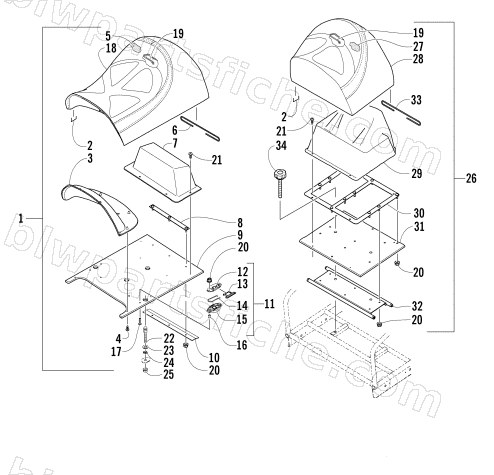

2005 Arctic Cat BEARCAT WIDE TRACK — SEAT ASSEMBLY
2005 BEARCAT WIDE TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-764 | SEAT, S/P ASSY-05 B/C W/T | 1 | $797.95 | |
| 2 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 3 | 1606-612 | INSERT, SEAT FOAM-LG | 1 | $31.95 | |
| 4 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 5 | 2706-611 | FOAM,SEAT-FRONT(75-80ILD),46@5.1 | 1 | $235.95 | |
| 6 | 2606-943 | WIRE, SEAT (11.4)-BENT | 1 | $1.95 | |
| 7 | 2606-550 | EXTENSION,TOOLBOX | 1 | $106.95 | |
| 8 | 2706-038 | STUD PLATE,FRONT SEAT-PTD BLK | 1 | $23.95 | |
| 9 | 2606-467 | BASE, SEAT-FRT | 1 | $131.95 | |
| 10 | 2606-688 | PLATE, SEAT HOOK | 1 | $17.95 | |
| 11 | 2706-164 | SEAT LATCH-MFG ASSY | 1 | $15.11 | |
| 12 | 1673-635 | COVER,LATCH-SEAT | 1 | $5.95 | |
| 13 | 2606-854 | LEVER,RELEASE-SEATLATCH | 1 | $9.59 | |
| 14 | 0673-023 | CLIP,SPRING RETAINING-SS | 1 | $39.95 | |
| 15 | 1673-634 | BACK,LATCH-SEAT | 1 | $8.95 | |
| 16 | 1623-111 | SPACER, .325 X .540 X .400 | 1 | $3.02 | |
| 17 | 0623-060 | SCREW,OVAL HEAD-1/4-20X1-1/2 | 1 | $1.64 | |
| 18 | 2706-655 | COVER, SEAT-FRONT-BCWT | 1 | $390.95 | |
| 20 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 21 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 22 | 1623-345 | STUD, LATCH- SEAT | 1 | $16.49 | |
| 23 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 24 | 0423-322 | NUT, WHEEL MOUNTING-Z&C | 1 | $2.95 | |
| 25 | 1623-083 | NUT,HEX JAM - M10 X 1.25 | 1 | $1.78 | |
| 26 | 1718-765 | SEAT, S/P ASSY-05 B/C W/T-PASS | 1 | $651.95 | |
| 27 | 3706-312 | FOAM, SEAT-PASSENGER | 1 | $106.95 | |
| 28 | 2706-654 | COVER, PASS SEAT-BCWT | 1 | $196.95 | |
| 29 | 2606-754 | EXTENSION, TOOLBOX-03 BCWT | 1 | $213.95 | |
| 30 | 1706-962 | PLATE,BACKREST-PTD BLK | 1 | $55.95 | |
| 31 | 2606-468 | BASE, SEAT-REAR | 1 | $143.95 | |
| 32 | 1706-960 | MOUNT, BACKREST-PTD BLK | 1 | $145.95 | |
| 33 | 2606-942 | WIRE, SEAT (8.0)-BENT | 1 | $2.47 | |
| 34 | 2606-822 | KNOB, MALE-5/16-18 X 3.5 | 1 | $12.35 |
