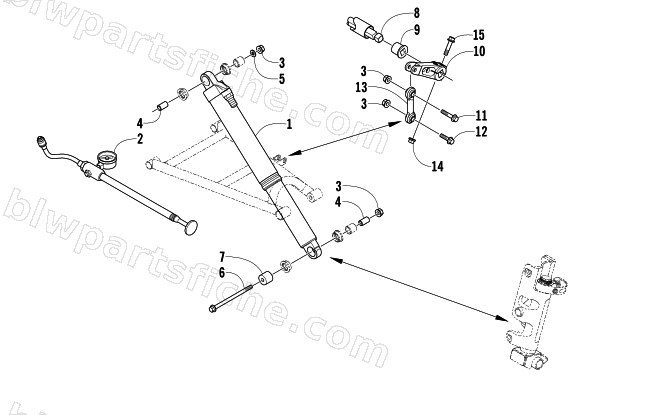

SHOCK ABSORBER AND SWAY BAR ASSEMBLY
2005 FIRECAT 500 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1703-684 | SHOCK,SKI-43" FLOAT ASSY | 1 | $1,281.95 | |
| 2 | 2603-614 | PUMP,FOX HP W/BLEED-150 PSI (FLOAT2) | 1 | $69.95 | |
| 3 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 4 | 3604-594 | AXLE,SHOCK EYELET-10(ID)X20.7 MM | 1 | $4.40 | |
| 5 | 0623-991 | WSHR, FLAT ALUM-.390 X 1.125 X .125 | 1 | $1.95 | |
| 6 | 8020-232 | SCREW,CAP-HFH 3/8-16 X 3.25 Z&Y | 1 | $5.65 | |
| 7 | 0603-648 | SPACER,SHOCK-MTG | 1 | $15.11 | |
| 8 | 1703-616 | SWAY BAR,1/2 DIA X 26.22"-PTD BLK | 1 | $137.95 | |
| 9 | 1603-211 | BEARING,SWAY BAR-(THIN WALL TUBE) | 1 | $4.40 | |
| 10 | 2603-307 | ARM, SWAY BAR-W/INSERT | 1 | $110.95 | |
| 11 | 8020-226 | SCREW,CAP-HFH 3/8-16 X 1.75 Z&Y | 1 | $2.95 | |
| 12 | 8020-225 | SCREW,CAP-HFH 3/8-16 X 1.50 Z&Y | 1 | $1.78 | |
| 13 | 1603-002 | LINK,SWAY BAR | 1 | $54.95 | |
| 14 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 15 | 8002-137 | SCREW,CAP-HH 5/16-18 X2.00 G5 Z&Y | 1 | $1.09 |
