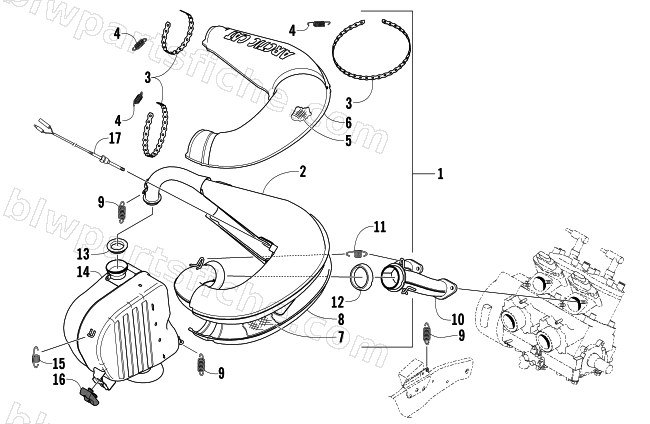

2005 Arctic Cat FIRECAT 500 — EXHAUST ASSEMBLY
2005 FIRECAT 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1712-108 | CHAMBER,EXP-FABR | 1 | $765.95 | |
| 2 | 1712-109 | CHAMBER,EXP-PTD BLK | 1 | $405.95 | |
| 3 | 0624-552 | TIE, PERFORATED BAND-5FT | 1 | $20.63 | |
| 3 | 0624-541 | TIE,PERFORATED BAND-IT( 25' ) | 1 | $110.95 | |
| 4 | 1612-178 | SPRING, EXHAUST STRAP | 1 | $3.85 | |
| 5 | 1612-613 | PACKING,EXP CHAMBER-TOP | 1 | $13.95 | |
| 6 | 1612-658 | COVER,EXP CHAMBER-UPR | 1 | $167.95 | |
| 7 | 1612-802 | PACKING,EXP CHAMBER-BOTTOM | 1 | $13.95 | |
| 8 | 1612-803 | COVER,EXP CHAMBER-BOTTOM | 1 | $97.95 | |
| 9 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 | |
| 10 | 1712-100 | MANIFOLD,EXHAUST-MACH | 1 | $216.95 | |
| 11 | 2612-399 | SPRING,EXTENSION | 1 | $3.71 | |
| 12 | 1612-014 | GASKET,EXHAUST HEADPIPE | 1 | $37.95 | |
| 13 | 0612-693 | GASKET,EXHAUST JOINT-RESONATOR | 1 | $29.95 | |
| 14 | 1712-020 | RESONATOR,EXHAUST-PTD BLK | 1 | $681.95 | |
| 15 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 16 | 1612-685 | MOUNT,RUBBER RESONATOR STANDOFF | 1 | $4.26 | |
| 17 | 0630-145 | SENSOR,EXHAUST TEMP-1/4" DIA | 1 | $220.95 |
