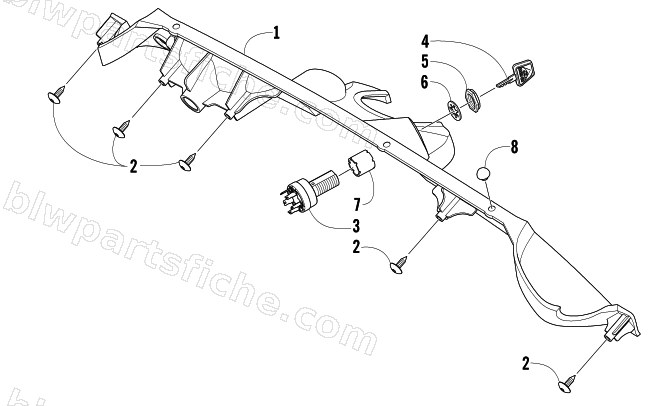

CONSOLE AND SWITCH ASSEMBLY

2005 FIRECAT 600 EFI EXT

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3606-348	CONSOLE,EFI	1	$184.95
2	1623-129	R/B 2623-166	1	$0.35
3	0609-728	SWITCH,IGNITION-NORM OPEN (LOW)	1	$54.95
5	0609-113	NUT,RETAINING 13/16-20 BLACK PLASTIC	1	$1.50
6	0123-899	WASHER,IGNITION	1	$0.95
8	1612-287	BUMPER,MOLDED-RUBBER(CHASSIS)	1	$3.16
