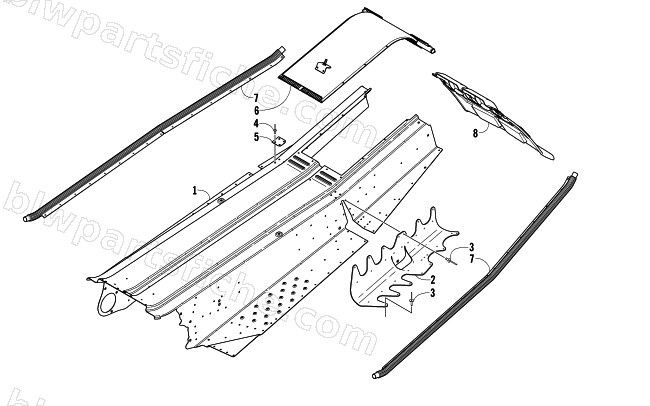

2005 Arctic Cat FIRECAT 600 EFI SNO PRO LIMITED EDITION — TUNNEL, COOLING, AND SNOWFLAP
2005 FIRECAT 600 EFI SNO PRO LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-823 | TUNNEL,S/P ASSY-05 F.C.-PTD BLK | 1 | $591.95 | |
| 2 | 3706-026 | BRKT,REAR SUSP MTG-RH-PTD BLK | 1 | $89.95 | |
| 2 | 3706-027 | BRKT,REAR SUSP MTG-LH-PTD BLK | 1 | $100.95 | |
| 3 | 0623-072 | RIVET,SOLID ALUM-156 X370 | 1 | $0.15 | |
| 3 | 0123-418 | RIVET, SOLID ALUM-.156 X.312 | 1 | $0.68 | |
| 3 | 0623-806 | RIVET, SOLID-.156 X.437-ALUM | 1 | $0.26 | |
| 3 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 4 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 5 | 2706-903 | BRACKET,SUPPORT-ETT TUNNEL-PTD BLK | 1 | $20.95 | |
| 6 | 3706-005 | EXCHANGER,HEAT-REAR-PTD BLK | 1 | $390.95 | |
| 7 | 3706-016 | HEAT EXCH,RUNNING BRD-RH-PTD BLK | 1 | $102.95 | |
| 7 | 3706-017 | HEAT EXCH,RUNNING BRD-LH-PTD BLK | 1 | $102.95 | |
| 8 | 3606-603 | R/B 3606-413 | 1 | $109.95 |
