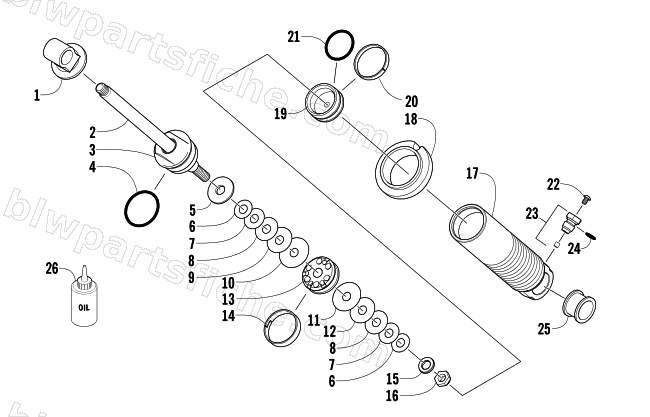

2005 Arctic Cat FIRECAT 600 EFI — REAR SUSPENSION FRONT ARM SHOCK ABSORBER
2005 FIRECAT 600 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2704-066 | SHOCK,FRT ARM-11.29"-IFP- FOX | 1 | $392.59 | |
| 1 | 1604-796 | EYELET, SHOCK - .630 DIA X .950 LGTH | 1 | $28.95 | |
| 2 | 2604-365 | SHAFT,SHOCK-CHROME-5.858 | 1 | $66.95 | |
| 3 | 1703-453 | END CAP,.900-W/ FLATS-ASSY | 1 | $75.95 | |
| 4 | 1604-271 | O-RING,OUTER | 1 | $2.47 | |
| 5 | 1604-272 | WASHER, TOP OUT -1.125 x .094 | 1 | $1.37 | |
| 6 | 2603-055 | VALVE,SHOCK- .800 DIA X .010 | 1 | $5.95 | |
| 7 | 2603-065 | VALVE,SHOCK- .900 DIA X .010 | 1 | $5.95 | |
| 8 | 2603-075 | VALVE,SHOCK-1.000 DIA X .010 | 1 | $5.95 | |
| 9 | 2603-096 | VALVE,SHOCK-1.100 DIA X .012 | 1 | $5.95 | |
| 10 | 2603-136 | VALVE,SHOCK-1.300 DIA X .012 | 1 | $5.95 | |
| 11 | 2603-125 | VALVE,SHOCK-1.250 DIA X .010 | 1 | $5.51 | |
| 12 | 2603-095 | VALVE,SHOCK-1.100 DIA X .010 | 1 | $5.95 | |
| 13 | 0603-953 | PISTON, .093 ORIFICE | 1 | $94.95 | |
| 14 | 1604-274 | STRAP, PISTON - TEFLON | 1 | $24.77 | |
| 15 | 1604-273 | WASHER, BACKUP - .620 x .094 | 1 | $1.95 | |
| 16 | 0623-696 | NUT, FLEX - 3/8-24 UNF Z&Y | 1 | $2.95 | |
| 17 | 2604-596 | BODY,FRT SHOCK-ALUM-IMP-EXTR | 1 | $206.95 | |
| 18 | 1603-911 | NUT,SPRING ADJUSTER-GRAY | 1 | $5.95 | |
| 19 | 0704-791 | PISTON,BLEEDLESS-IFP-ASSY | 1 | $33.95 | |
| 20 | 2604-153 | TEFLON BAND,FLOATING PISTON-1.459" | 1 | $26.95 | |
| 21 | 2604-152 | O-RING,FLOATING PISTON | 1 | $2.88 | |
| 22 | 0624-546 | SCREW,MACHINE-HSBH 6-32X1/4SS | 1 | $0.55 | |
| 23 | 0704-796 | VALVE,PRESSURE-ASSY | 1 | $28.95 | |
| 24 | 0830-168 | ORING,7.6454 ID X 1.778 CS | 1 | $1.09 | |
| 25 | 2604-156 | BUSHING,SHOCK-FRT.ARM-GRAY | 1 | $8.21 | |
| 26 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 |
