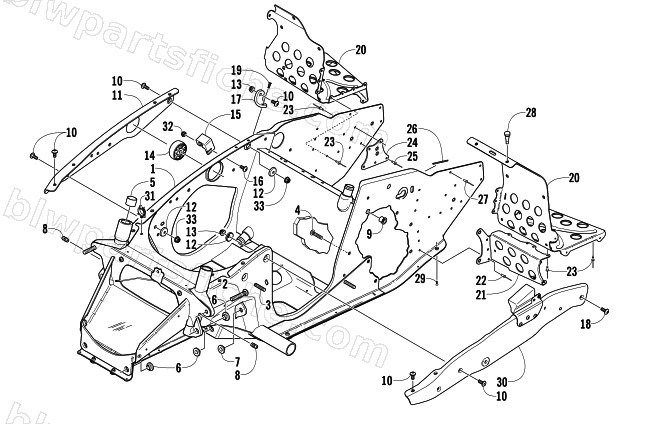

FRONT FRAME AND FOOTREST ASSEMBLY
2005 FIRECAT 700 EFI EXT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1707-025 | CHASSIS,S/P ASSY-06 F.C.(ACT) | 1 | $1,158.95 | |
| 2 | 1623-019 | BOLT,RIB CAR-3/8-16X2.00 | 1 | $3.85 | |
| 3 | 1623-020 | BOLT,RIB CAR-5/16-18X1.62 | 1 | $20.63 | |
| 4 | 1623-359 | BOLT,RIBBED CAR-5/16-18X1.75 | 1 | $2.06 | |
| 5 | 0675-161 | BEARING-14DU12 | 1 | $16.49 | |
| 6 | 0607-657 | BUSHING, LOWER- A-ARM | 1 | $2.47 | |
| 7 | 0607-656 | BUSHING, UPPER- A-ARM | 1 | $2.47 | |
| 8 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 9 | 0623-581 | INSERT, A L SERIES AL57-518-150 5/16-18 | 1 | $3.16 | |
| 10 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 11 | 3606-742 | BRACE,SIDE PLATE-RH | 1 | $67.95 | |
| 12 | 0623-943 | WASHER,SIDE PLATE BRACE | 1 | $30.95 | |
| 13 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 14 | 0608-364 | MOUNT,ENGINE-45 DURO | 1 | $65.95 | |
| 15 | 0608-432 | GUIDE,ROPE | 1 | $17.95 | |
| 16 | 8017-400 | SCREW,MACH-TSTRH 10-24X3/4 GR2 Z&Y | 1 | $0.68 | |
| 17 | 3606-634 | SUPPORT,SIDE PLATE | 1 | $16.49 | |
| 18 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 19 | 1623-115 | SCREW,SELF TAP-TSFH 10-16X.750 TYP B | 1 | $0.40 | |
| 20 | 3606-466 | FOOTREST, RH (2005) | 1 | $130.95 | |
| 20 | 3606-467 | FOOTREST, LH (2005) | 1 | $117.95 | |
| 21 | 0607-772 | BRTK,SUPPORT FOOTREST-RH | 1 | $23.39 | |
| 21 | 0607-773 | BRKT,SUPPORT FOOTREST-LH | 1 | $22.01 | |
| 22 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 23 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 24 | 2706-151 | PLATE,BACKING-FRT ARM-PTD BLK | 1 | $20.63 | |
| 25 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 26 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 | |
| 27 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 28 | 3606-178 | BUMPER,RUBBER | 1 | $2.88 | |
| 29 | 1623-018 | SCREW,SELF TAP-TSFH 10-16X.50 TYPE B | 1 | $0.26 | |
| 30 | 2706-789 | BRACE,LH SIDE PLATE-ASSY | 1 | $432.95 | |
| 31 | 1623-171 | CLIP,SNAP | 1 | $2.88 | |
| 32 | 8041-246 | NUT,HEX THIN LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 33 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 |
