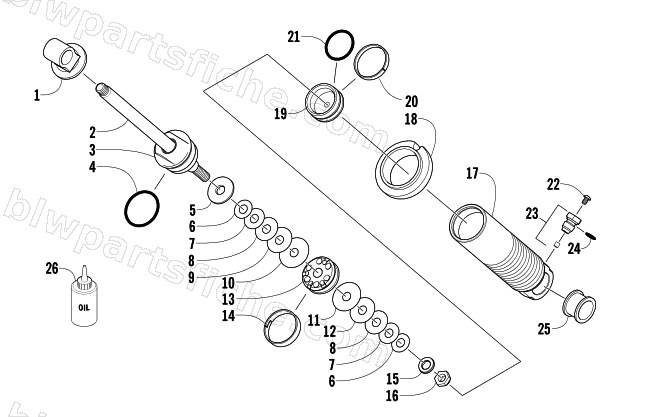

REAR SUSPENSION FRONT ARM SHOCK ABSORBER
2005 FIRECAT 700 EFI EXT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2704-066 | SHOCK,FRT ARM-11.29"-IFP- FOX | 1 | $392.59 | |
| 1 | 1604-796 | EYELET, SHOCK - .630 DIA X .950 LGTH | 1 | $28.95 | |
| 2 | 2604-365 | SHAFT,SHOCK-CHROME-5.858 | 1 | $66.95 | |
| 3 | 1703-453 | END CAP,.900-W/ FLATS-ASSY | 1 | $75.95 | |
| 4 | 1604-271 | O-RING,OUTER | 1 | $2.47 | |
| 5 | 1604-272 | WASHER, TOP OUT -1.125 x .094 | 1 | $1.37 | |
| 6 | 2603-055 | VALVE,SHOCK- .800 DIA X .010 | 1 | $5.95 | |
| 7 | 2603-065 | VALVE,SHOCK- .900 DIA X .010 | 1 | $5.95 | |
| 8 | 2603-075 | VALVE,SHOCK-1.000 DIA X .010 | 1 | $5.95 | |
| 9 | 2603-096 | VALVE,SHOCK-1.100 DIA X .012 | 1 | $5.95 | |
| 10 | 2603-136 | VALVE,SHOCK-1.300 DIA X .012 | 1 | $5.95 | |
| 11 | 2603-125 | VALVE,SHOCK-1.250 DIA X .010 | 1 | $5.51 | |
| 12 | 2603-095 | VALVE,SHOCK-1.100 DIA X .010 | 1 | $5.95 | |
| 13 | 0603-953 | PISTON, .093 ORIFICE | 1 | $94.95 | |
| 14 | 1604-274 | STRAP, PISTON - TEFLON | 1 | $24.77 | |
| 15 | 1604-273 | WASHER, BACKUP - .620 x .094 | 1 | $1.95 | |
| 16 | 0623-696 | NUT, FLEX - 3/8-24 UNF Z&Y | 1 | $2.95 | |
| 17 | 2604-596 | BODY,FRT SHOCK-ALUM-IMP-EXTR | 1 | $206.95 | |
| 18 | 1603-911 | NUT,SPRING ADJUSTER-GRAY | 1 | $5.95 | |
| 19 | 0704-791 | PISTON,BLEEDLESS-IFP-ASSY | 1 | $33.95 | |
| 20 | 2604-153 | TEFLON BAND,FLOATING PISTON-1.459" | 1 | $26.95 | |
| 21 | 2604-152 | O-RING,FLOATING PISTON | 1 | $2.88 | |
| 22 | 0624-546 | SCREW,MACHINE-HSBH 6-32X1/4SS | 1 | $0.55 | |
| 23 | 0704-796 | VALVE,PRESSURE-ASSY | 1 | $28.95 | |
| 24 | 0830-168 | ORING,7.6454 ID X 1.778 CS | 1 | $1.09 | |
| 25 | 2604-156 | BUSHING,SHOCK-FRT.ARM-GRAY | 1 | $8.21 | |
| 26 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 |
