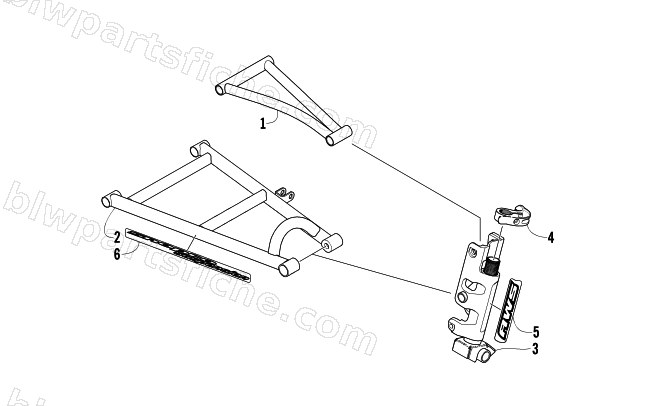

2005 Arctic Cat FIRECAT 700 EFI SNO PRO LIMITED EDITION — FRONT SUSPENSION
2005 FIRECAT 700 EFI SNO PRO LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1703-732 | A-ARM,UPR-FABR PRL CAT GRN | 1 | $228.95 | |
| 2 | 1703-738 | A-ARM,FRT LWR-FABR RH PRL CAT GRN | 1 | $168.95 | |
| 2 | 1703-739 | A-ARM,FRT LWR-FABR LH PRL CAT GRN | 1 | $219.95 | |
| 3 | 1703-730 | SPINDLE,RH-FABR PRL CAT GRN | 1 | $284.95 | |
| 3 | 1703-731 | SPINDLE,LH-FABR PRL CAT GRN | 1 | $256.95 | |
| 4 | 1703-664 | ARM,STEERING-SPINDLE-PTD PEARL CAT GRN | 1 | $71.95 | |
| 5 | 5611-934 | DECAL,SPINDLE-RH | 1 | $39.95 | |
| 5 | 5611-935 | DECAL,SPINDLE-LH | 1 | $39.95 | |
| 6 | 5611-938 | DECAL,A-ARM | 1 | $26.95 |
