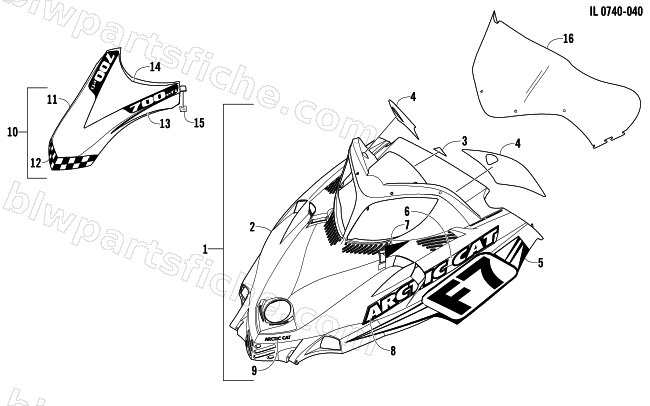

2005 Arctic Cat FIRECAT 700 EFI SNO PRO LIMITED EDITION — HOOD AND WINDSHIELD ASSEMBLY
2005 FIRECAT 700 EFI SNO PRO LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-650 | HOOD W/DECALS-GRN TA (F7 CARB/EFI) | 1 | $1,406.95 | |
| 2 | 1718-666 | HOOD W/O DECALS-PEARL CAT GRN | 1 | $1,090.95 | |
| 4 | 6611-306 | DECAL,HOOD-CONSOLE RH | 1 | $25.95 | |
| 4 | 6611-029 | DECAL,HOOD-CONSOLE-LH | 1 | $31.95 | |
| 5 | 6611-318 | DECAL,HOOD-LWR "F7" RH | 1 | $92.95 | |
| 5 | 6611-319 | DECAL,HOOD-LWR "F7" LH | 1 | $92.95 | |
| 6 | 6611-314 | DECAL,HOOD-UPR RH | 1 | $129.95 | |
| 6 | 6611-315 | DECAL,HOOD-UPR LH | 1 | $50.95 | |
| 7 | 5611-936 | DECAL,HOOD-VENT RR RH | 1 | $20.63 | |
| 7 | 5611-937 | DECAL,HOOD-VENT RR LH | 1 | $20.63 | |
| 8 | 6611-312 | DECAL,HOOD-FWD RH | 1 | $50.95 | |
| 8 | 6611-313 | DECAL,HOOD-FWD LH | 1 | $50.95 | |
| 9 | 3611-187 | DECAL, HOOD-"ARCTIC CAT"-BLK | 1 | $26.95 | |
| 10 | 1718-699 | COVER, HOOD-BLK TA-W/DECALS"700 EFI" | 1 | $245.95 | |
| 11 | 2706-031 | COVER,HOOD-SNOW SEPERATOR-PTD BLK | 1 | $574.95 | |
| 12 | 5611-693 | DECAL,COVER-FRT | 1 | $166.95 | |
| 13 | 5611-930 | DECAL,COVER-SIDE RH | 1 | $30.95 | |
| 13 | 5611-931 | DECAL,COVER-SIDE LH | 1 | $30.95 | |
| 14 | 6611-305 | DECAL,COVER CREST-700 EFI | 1 | $85.95 | |
| 15 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 16 | 3606-250 | WINDSHIELD,LOW ALL BLK | 1 | $204.95 |
