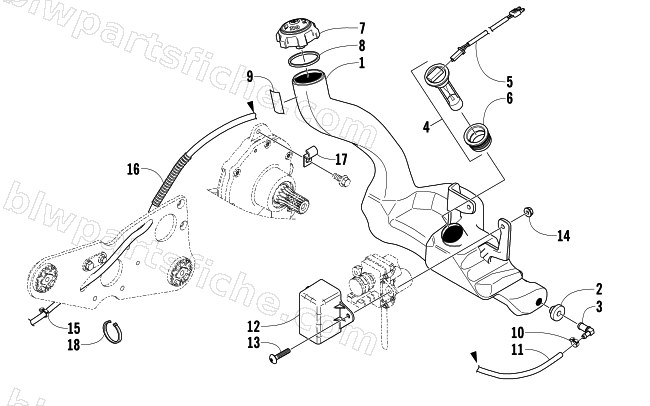

OIL TANK ASSEMBLY
2005 FIRECAT 700 EFI SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-673 | TANK,OIL | 1 | $110.95 | |
| 2 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 3 | 1670-324 | ELBOW, 90 DEG-1/4 BARB | 1 | $3.44 | |
| 4 | 0609-683 | SENSOR,OIL LEVEL-ROTARY W/SEAL | 1 | $133.95 | |
| 5 | 0609-639 | SWITCH,OIL-W/HARNESS-SUB ASSY | 1 | $82.95 | |
| 6 | 0609-237 | SEAL,GROMMET-OIL SENSOR (REF 0609-224) | 1 | $3.44 | |
| 7 | 1670-365 | CAP, VENTED- OIL IMPRINTED | 1 | $33.95 | |
| 8 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 9 | 4611-532 | DECAL,OIL TANK-VEV SYNTHETIC | 1 | $2.75 | |
| 10 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 11 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 11 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 13 | 8017-584 | SCREW,MACH-TSTRH 1/4-20 X 1 1/4 GR2 Z&Y | 1 | $1.23 | |
| 14 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 15 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 16 | 0716-558 | LOOM,PROTECTIVE-10' (0619-342) | 1 | $16.49 | |
| 17 | 1623-390 | CLAMP,HALF | 1 | $4.40 | |
| 18 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
