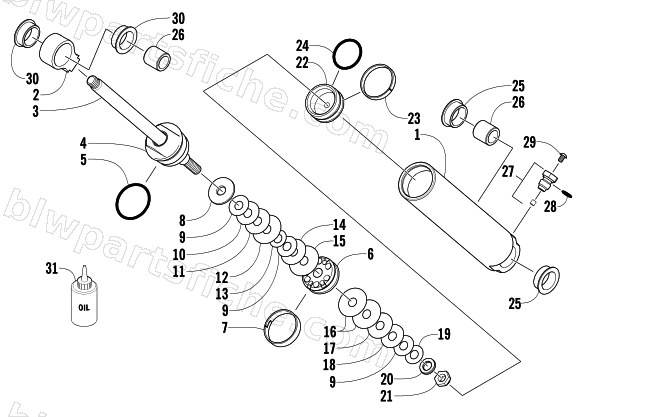

REAR SUSPENSION REAR ARM SHOCK ABSORBER

2005 FIRECAT 700 EFI

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
0	1704-117	SHOCK,REAR ARM -IMP - ALUM - ASSY	1	$505.95
1	2604-598	BODY,RR SHOCK-1.75 x 7.374 -IMP EXTR	1	$239.95
2	1603-503	EYELET,SHOCK - 1.000 DIA X 1.137 LGTH	1	$26.95
4	4604-126	BEARING, ENDCAP - LONG - W/BLEED ASSY	1	$49.95
5	1604-271	O-RING,OUTER	1	$2.47
6	1603-314	PISTON,0.039 ORIFICE	1	$120.95
7	1604-274	STRAP, PISTON - TEFLON	1	$24.77
8	1604-272	WASHER, TOP OUT -1.125 x .094	1	$1.37
9	2603-065	VALVE,SHOCK- .900 DIA X .010	1	$5.95
10	2603-075	VALVE,SHOCK-1.000 DIA X .010	1	$5.95
11	2603-095	VALVE,SHOCK-1.100 DIA X .010	1	$5.95
12	2603-125	VALVE,SHOCK-1.250 DIA X .010	1	$5.51
13	2603-040	VALVE,SHOCK- .700 DIA X .004	1	$5.95
14	2603-094	VALVE,SHOCK-1.100 DIA X .008	1	$5.95
15	2603-135	VALVE,SHOCK-1.300 DIA X .010	1	$5.95
16	2603-126	VALVE,SHOCK-1.250 DIA X .012	1	$5.95
17	2603-096	VALVE,SHOCK-1.100 DIA X .012	1	$5.95
18	2603-076	VALVE,SHOCK-1.000 DIA X .012	1	$5.95
19	2603-055	VALVE,SHOCK- .800 DIA X .010	1	$5.95
20	1604-273	WASHER, BACKUP - .620 x .094	1	$1.95
21	0623-696	NUT, FLEX - 3/8-24 UNF Z&Y	1	$2.95
22	0704-791	PISTON,BLEEDLESS-IFP-ASSY	1	$33.95
23	2604-153	TEFLON BAND,FLOATING PISTON-1.459"	1	$26.95
24	2604-152	O-RING,FLOATING PISTON	1	$2.88
25	2604-164	BUSHING,SHOCK-REAR ARM-GRAY	1	$9.59
26	1604-397	SLEEVE, EYELET - INNER - .950	1	$3.99
27	0704-796	VALVE,PRESSURE-ASSY	1	$28.95
28	0830-168	ORING,7.6454 ID X 1.778 CS	1	$1.09
29	0624-546	SCREW,MACHINE-HSBH 6-32X1/4SS	1	$0.55
30	1604-262	BUSHING,SHOCK-.125 FLANGE	1	$3.02
31	4639-366	S/M SHOCK OIL-1 QUART	1	$21.95
