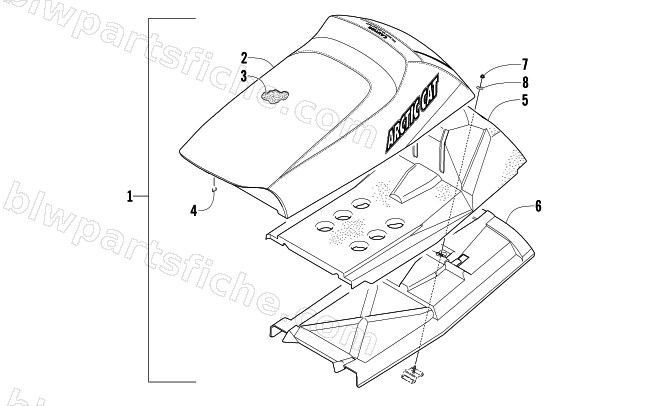

2005 Arctic Cat FIRECAT 700 EFI — SEAT ASSEMBLY
2005 FIRECAT 700 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 7998-080 | SEAT,BLK-MFG ASSY | 1 | $749.95 | |
| 1 | 7998-079 | SEAT,GRN-MFG ASSY | 1 | $727.95 | |
| 1 | 7998-081 | SEAT,RED-MFG ASSY | 1 | $671.95 | |
| 2 | 2706-716 | COVER,SEAT-BLK W/DECAL | 1 | $486.95 | |
| 2 | 2706-715 | COVER,SEAT-GRN W/DECAL | 1 | $498.95 | |
| 2 | 2706-717 | COVER,SEAT-RED W/DECAL | 1 | $498.95 | |
| 3 | 0717-196 | FOAM,SEAT (92-97 ILD).50R@5.6 | 1 | $112.95 | |
| 4 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 5 | 0617-438 | FOAM,SEAT-LWR | 1 | $143.95 | |
| 6 | 2606-907 | BASE,SEAT-PLASTIC | 1 | $296.95 | |
| 7 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 8 | 0623-875 | WASHER, BACKING-7MM ID X 11/8OD | 1 | $1.78 |
