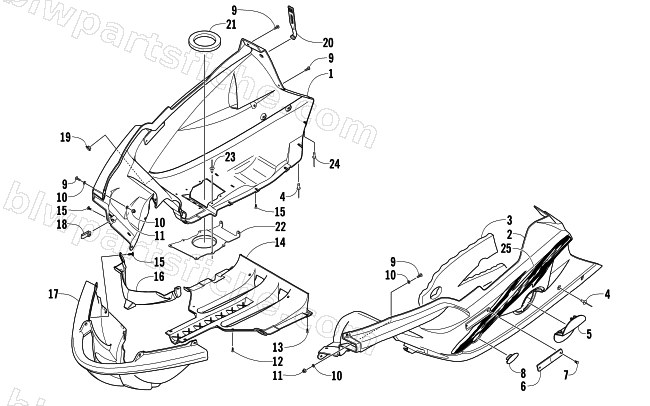

BELLY PAN ASSEMBLY
2005 FIRECAT 700 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3606-574 | BELLY PAN,INJ MOLD-RH PEARL CAT GRN | 1 | $276.95 | |
| 1 | 3606-576 | BELLY PAN,INJ MOLD-RH ORG | 1 | $393.95 | |
| 2 | 3606-915 | BELLY PAN,INJ MOLD-LH GRN | 1 | $276.95 | |
| 2 | 3606-919 | BELLY PAN,INJ MOLD-LH ORG | 1 | $307.95 | |
| 3 | 0617-462 | FOAM,BELLYPAN-LH | 1 | $43.95 | |
| 4 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 5 | 3606-914 | PANEL,ACT ACCESS-GRN 5" | 1 | $55.95 | |
| 5 | 3606-918 | PANEL,ACT ACCESS-ORG 5" | 1 | $54.95 | |
| 6 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 7 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 8 | 3606-568 | PANEL,CLUTCH ACCESS-PEARL CAT GRN | 1 | $31.95 | |
| 8 | 3606-570 | PANEL,CLUTCH ACCESS-ORG | 1 | $17.95 | |
| 9 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 10 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 11 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 12 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 13 | 1623-031 | R/B 2623-165 | 1 | $3.95 | |
| 14 | 3606-502 | BELLY PAN,CENTER-PEARL CAT GRN | 1 | $291.95 | |
| 14 | 3606-751 | BELLY PAN,CENTER-ORANGE | 1 | $100.95 | |
| 15 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 16 | 2606-911 | SCREEN,FRT BUMPER | 1 | $34.95 | |
| 17 | 4606-041 | BELLY PAN,FRT BUMPER-PEARL CAT GRN | 1 | $232.95 | |
| 17 | 4606-043 | BELLY PAN,FRT BUMPER-ORN | 1 | $225.95 | |
| 18 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 19 | 3606-050 | PIN, RESONATOR MTG | 1 | $20.63 | |
| 20 | 2606-624 | STRAP,HOLDDOWN-HOOD | 1 | $13.73 | |
| 21 | 1612-603 | SEAL,EXH OUTLET | 1 | $57.95 | |
| 22 | 1612-686 | DEFLECTOR,EXH-STAMPED | 1 | $122.95 | |
| 23 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 24 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 25 | 6611-202 | DECAL,BELLY PAN-GRN RH SNO PRO | 1 | $136.95 | |
| 25 | 6611-203 | DECAL,BELLY PAN-GRN LH SNO PRO | 1 | $136.95 | |
| 25 | 6611-204 | DECAL,BELLY PAN-ORG RH SNO PRO | 1 | $171.95 | |
| 25 | 6611-205 | DECAL,BELLY PAN-ORG LH SNO PRO | 1 | $141.95 |
