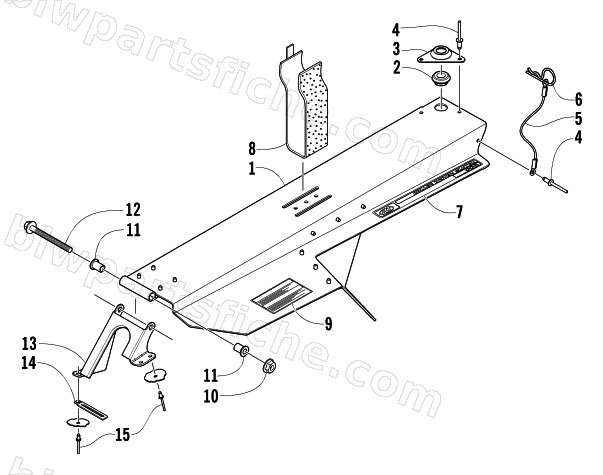

2005 Arctic Cat KING CAT 900 EFI EARLY BUILD — BELT GUARD ASSEMBLY
2005 KING CAT 900 EFI EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-994 | GUARD,CLUTCH-UNPAINTED-ASSY | 1 | $98.95 | |
| 2 | 0607-549 | BUSHING, BELT GUARD | 1 | $3.02 | |
| 3 | 0607-550 | PLATE, BUSHING-BELT GUARD-PTD BLK | 1 | $12.95 | |
| 4 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 5 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 6 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 7 | 3611-969 | DECAL, "ACT-ROLLER DRIVEN CLUTCH" | 1 | $89.95 | |
| 8 | 0707-582 | RETAINER, DRIVE BELT-VELCRO | 1 | $17.87 | |
| 9 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 10 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 11 | 0607-094 | INSERT,HINGE-GUARD | 1 | $0.95 | |
| 12 | 8020-050 | SCREW,CAP-HFH 1/4-20 X 2.750 Z&Y | 1 | $3.85 | |
| 13 | 0707-707 | BRKT, MTG - GUARD-PTD BLK | 1 | $37.95 | |
| 14 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 15 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 |
