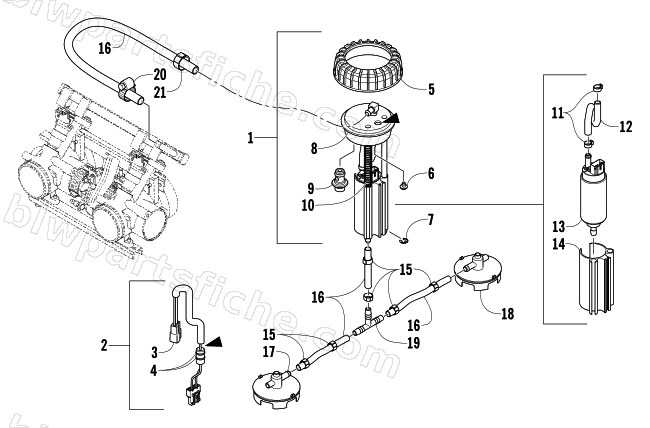

2005 Arctic Cat KING CAT 900 EFI EARLY BUILD — FUEL PUMP ASSEMBLY
2005 KING CAT 900 EFI EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-600 | FUEL PUMP | 1 | $1,181.95 | |
| 2 | 1670-117 | HARNESS, FUEL PUMP-EFI (MASON) | 1 | $244.95 | |
| 3 | 0670-380 | HOUSING, CONNECTOR | 1 | $5.95 | |
| 4 | 0670-381 | O-RING | 1 | $14.95 | |
| 5 | 1670-119 | NUT,RETAINING-FUEL PUMP FLANGE | 1 | $12.95 | |
| 6 | 1670-155 | SCREW, ASSY - #10-32 X .31 | 1 | $1.23 | |
| 7 | 1670-244 | RING, STUD RETAINER - FUEL PUMP | 1 | $1.95 | |
| 8 | 1670-118 | SEAL,FUEL PUMP FLANGE (MASON) | 1 | $20.63 | |
| 10 | 1670-411 | SPRING, FUEL PUMP | 1 | $6.34 | |
| 11 | 1670-520 | CLAMP,HOSE | 1 | $5.78 | |
| 12 | 1670-521 | HOSE,FUEL | 1 | $92.95 | |
| 13 | 1670-153 | PUMP ASSY, FUEL | 1 | $480.95 | |
| 14 | 1670-410 | HOUSING, FUEL PUMP (HOLDER) | 1 | $37.95 | |
| 15 | 0610-563 | CLAMP, HOSE-13.2MM-15.7MM | 1 | $1.78 | |
| 16 | 0610-075 | HOSE,GASLINE-10'ROLL | 1 | $150.95 | |
| 17 | 1670-619 | PICKUP, FUEL-(MP12)SMALL NONVENTED | 1 | $69.95 | |
| 18 | 1670-618 | PICKUP,FUEL-SMALL/MP-13 VENT | 1 | $93.95 | |
| 19 | 0670-235 | FITTING,TEE-5/16 | 1 | $4.54 | |
| 20 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 21 | 0610-419 | CLAMP, HOSE (14.5), 12.0 MM TO 14.5 MM | 1 | $1.92 |
