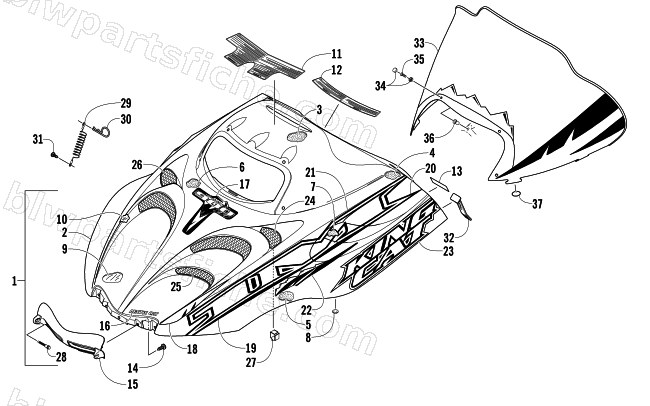

2005 Arctic Cat KING CAT 900 EFI EARLY BUILD — HOOD AND WINDSHIELD ASSEMBLY
2005 KING CAT 900 EFI EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-581 | HOOD W/DECALS-05 KING CAT 900 EFI-ORN | 1 | $1,422.95 | |
| 2 | 1718-580 | HOOD W/O DECALS-05 KING CAT-ORN | 1 | $1,090.95 | |
| 3 | 0717-148 | FOAM, HOOD-MIDDLE UPR RH | 1 | $15.11 | |
| 3 | 0717-149 | FOAM, HOOD-MIDDLE UPR LH | 1 | $14.95 | |
| 4 | 0717-164 | FOAM, HOOD-UPR RH | 1 | $6.95 | |
| 4 | 0717-147 | FOAM, HOOD-UPR LH | 1 | $14.95 | |
| 5 | 0717-162 | FOAM, HOOD-REAR RH | 1 | $5.95 | |
| 5 | 0717-141 | FOAM, HOOD-REAR LH-00 ZR | 1 | $12.95 | |
| 6 | 0717-138 | FOAM, HOOD-MIDDLE-00 ZR | 1 | $5.95 | |
| 7 | 0617-426 | FOAM, VENT-HOOD | 1 | $27.95 | |
| 8 | 1623-199 | PAD,VELCRO-1"X.75"-#8 W/ADHESIVE BACKING | 1 | $0.65 | |
| 9 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 9 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 10 | 2606-233 | FOIL, HOOD-UPR RH | 1 | $89.95 | |
| 11 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 12 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 13 | 3611-509 | DECAL, WARNING-SEATING CAPACITY | 1 | $72.95 | |
| 14 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 15 | 3606-208 | HINGE,HOOD-DK PEWTER-ROUTED | 1 | $49.95 | |
| 16 | 5611-567 | DECAL,"ARCTIC CAT"-HOOD-NOSE | 1 | $19.95 | |
| 17 | 5611-886 | DECAL,HOOD-"900 EFI"-CREST (ORN) | 1 | $42.95 | |
| 18 | 5611-912 | DECAL,HOOD-FORWARD-R/H (ORN) | 1 | $16.95 | |
| 18 | 5611-913 | DECAL,HOOD-FORWARD-L/H (ORN) | 1 | $20.95 | |
| 19 | 5611-876 | DECAL,HOOD-VENT-REAR-R/H (ORN) | 1 | $42.95 | |
| 19 | 5611-877 | DECAL,HOOD-VENT-REAR-L/H (ORN) | 1 | $36.95 | |
| 20 | 5611-878 | DECAL,HOOD-VENT-CENTER-R/H (ORN) | 1 | $33.95 | |
| 20 | 5611-879 | DECAL,HOOD-VENT-CENTER-L/H (ORN) | 1 | $34.95 | |
| 21 | 5611-880 | DECAL,HOOD-VENT-FORWARD-R/H (ORN) | 1 | $49.95 | |
| 21 | 5611-881 | DECAL,HOOD-VENT-FORWARD-L/H (ORN) | 1 | $45.95 | |
| 22 | 5611-882 | DECAL,HOOD-CENTER-R/H (ORN) | 1 | $29.95 | |
| 22 | 5611-883 | DECAL,HOOD-CENTER-L/H (ORN) | 1 | $29.95 | |
| 23 | 5611-884 | DECAL,HOOD-"KING CAT"-LOWER-R/H (ORN) | 1 | $27.95 | |
| 23 | 5611-885 | DECAL,HOOD-"KING CAT"-LOWER-L/H (ORN) | 1 | $74.95 | |
| 24 | 2706-435 | SCREEN,VENT-HOOD-LH/UPPER-PTD DK PEWTER | 1 | $24.95 | |
| 25 | 2706-433 | SCREEN,VENT-HOOD-LH/CTR-PTD DK PEWTER | 1 | $63.95 | |
| 26 | 2706-434 | SCREEN,VENT-HOOD-R/H-PTD DK PEWTER | 1 | $55.95 | |
| 27 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 28 | 1623-016 | SCREW, HEX DOME HEAD -1/4-20 x1.24 Z&Y | 1 | $27.95 | |
| 29 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 32 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 33 | 3606-407 | WINDSHIELD,FORMED-05 KING CAT (ORN) | 1 | $240.95 | |
| 34 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 35 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 36 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 37 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 |
