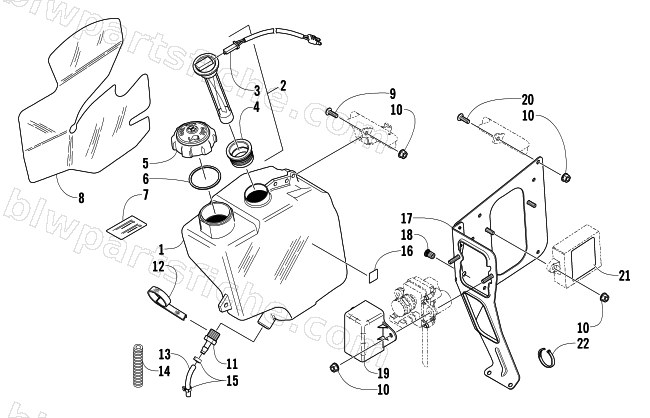

2005 Arctic Cat KING CAT 900 EFI EARLY BUILD — OIL TANK ASSEMBLY
2005 KING CAT 900 EFI EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-026 | TANK,OIL(2000 ZR) | 1 | $122.95 | |
| 2 | 0609-503 | SENSOR,OIL LEVEL-ROTARY W/SEAL | 1 | $75.95 | |
| 3 | 0609-518 | SWITCH, OIL-W/HARNESS- ASSY | 1 | $102.95 | |
| 4 | 0609-237 | SEAL,GROMMET-OIL SENSOR (REF 0609-224) | 1 | $3.44 | |
| 5 | 1670-365 | CAP, VENTED- OIL IMPRINTED | 1 | $33.95 | |
| 6 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 7 | 4611-532 | DECAL,OIL TANK-VEV SYNTHETIC | 1 | $2.75 | |
| 8 | 1670-234 | FOIL, PROTECTIVE-OIL TANK | 1 | $71.95 | |
| 9 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 10 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 11 | 0670-733 | FITTING,STRAIGHT-5/16 X 3/8 NPT | 1 | $5.65 | |
| 12 | 0670-289 | TAPE, TEFLON-ROLL | 1 | $6.34 | |
| 13 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 13 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 14 | 0716-558 | LOOM,PROTECTIVE-10' (0619-342) | 1 | $16.49 | |
| 15 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 16 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 17 | 0770-639 | PLATE,MTG-ELECTRICAL W/STUDS (EFI) | 1 | $77.95 | |
| 18 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 20 | 8017-577 | SCREW,MACH-TSTRH 1/4-20 X 1/2 GR2 Z&Y | 1 | $1.23 | |
| 21 | 3611-403 | DECAL,INSTRUCTIONS-FUEL/EFI | 1 | $8.95 | |
| 22 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
