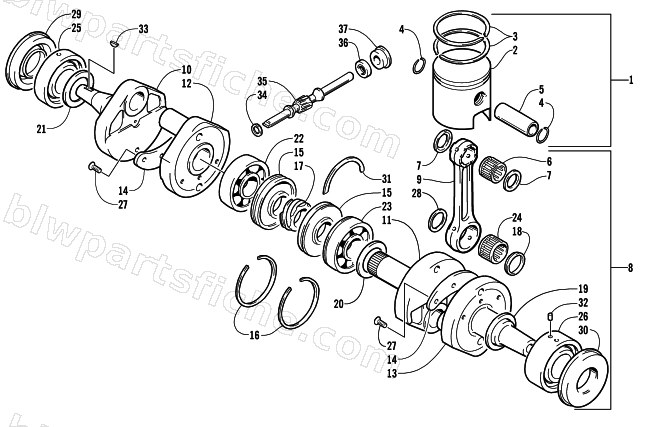

2005 Arctic Cat KING CAT 900 EFI EARLY BUILD — PISTON AND CRANKSHAFT
2005 KING CAT 900 EFI EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-393 | PISTON ASSY, 860 L/C | 1 | $267.95 | |
| 3 | 3006-394 | RING SET,PISTON 860 L/C | 1 | $114.95 | |
| 4 | 3008-585 | SNAP RING,M24 | 1 | $3.71 | |
| 5 | 3006-395 | PIN,PISTON 860 L/C | 1 | $43.95 | |
| 6 | 3008-583 | BEARING,NEEDLE,M24 | 1 | $41.95 | |
| 7 | 3008-582 | WASHER, M24X36X2 | 1 | $13.73 | |
| 8 | 3006-053 | CRANKSHAFT ASSY, 02 800 L/C EFI | 1 | $2,661.95 | |
| 9 | 3005-867 | ROD, CONNECTING | 1 | $234.95 | |
| 10 | 3006-054 | CRANKSHAFT, R 02 800 L/C EFI | 1 | $510.95 | |
| 11 | 3006-917 | CRANKSHAFT,M | 1 | $406.95 | |
| 12 | 3006-919 | WHEEL,CRANKSHAFT | 1 | $427.95 | |
| 13 | 3006-920 | CRANKSHAFT,L | 1 | $436.95 | |
| 14 | 3005-872 | BALANCER, CRANKSHAFT | 1 | $57.95 | |
| 15 | 3005-873 | RACE, MIDDLE CRANK SEAL | 1 | $90.95 | |
| 16 | 3005-874 | RING, MIDDLE CRANK SEAL | 1 | $34.95 | |
| 17 | 3005-882 | GEAR, OIL PUMP DRIVE | 1 | $201.95 | |
| 18 | 3004-147 | WASHER, M30X42X3 | 1 | $17.87 | |
| 19 | 3005-848 | WASHER | 1 | $13.73 | |
| 20 | 3008-495 | WASHER,40MM | 1 | $4.68 | |
| 21 | 3005-849 | WASHER | 1 | $15.11 | |
| 22 | 3005-850 | BEARING | 1 | $190.95 | |
| 23 | 3005-851 | BEARING | 1 | $292.95 | |
| 24 | 3008-584 | BEARING,NEEDLE,M30 | 1 | $73.95 | |
| 25 | 3005-852 | BEARING | 1 | $217.95 | |
| 26 | 3005-853 | BEARING | 1 | $287.95 | |
| 27 | 3007-440 | SCREW | 1 | $2.06 | |
| 28 | 3008-603 | WASHER, CRANK PIN NO. 1-M30X38 | 1 | $4.68 | |
| 29 | 3005-855 | SEAL, OIL | 1 | $88.95 | |
| 30 | 3005-856 | SEAL, OIL | 1 | $85.95 | |
| 31 | 3005-857 | C-RING | 1 | $20.63 | |
| 32 | 3003-658 | PIN,ALIGNMENT | 1 | $3.16 | |
| 33 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 | |
| 34 | 3423-300 | WASHER,M10X18X1 | 1 | $2.75 | |
| 35 | 3005-883 | GEAR, OIL PUMP DRIVEN | 1 | $131.95 | |
| 36 | 3007-431 | OIL SEAL-10X22X6 | 1 | $16.49 | |
| 37 | 3005-909 | SEAL, MECHANICAL WATER PUMP | 1 | $66.95 |
