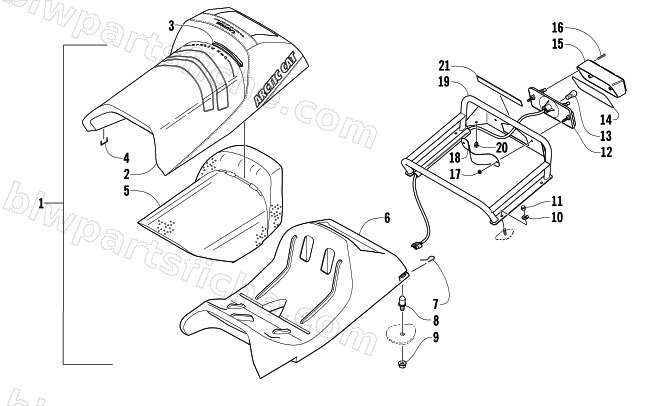

2005 Arctic Cat KING CAT 900 EFI EARLY BUILD — SEAT, RACK, AND TAILLIGHT ASSEMBLY
2005 KING CAT 900 EFI EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 7997-843 | SEAT,ORN (05 MC)-MFG ASSY | 1 | $856.95 | |
| 2 | 2706-569 | COVER,SEAT-05 KING CAT-ORN | 1 | $498.95 | |
| 4 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 5 | 1706-909 | FOAM, SEAT CUSHION-MC (73-78ILD).48@3.0 | 1 | $117.95 | |
| 6 | 3606-193 | SEATBASE W/FOAM - INJ MOLD | 1 | $288.95 | |
| 7 | 1623-056 | CLIP,RETAINING SPRING-SEATBASE | 1 | $1.95 | |
| 8 | 1623-198 | STUD,LATCH-SEAT-D | 1 | $11.79 | |
| 9 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 10 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 12 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 13 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 14 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 15 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 16 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 17 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 18 | 2606-704 | PLATE,PROTECTOR-TAILLIGHT | 1 | $64.95 | |
| 20 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 21 | 3611-107 | DECAL,CAUTION-RACK | 1 | $20.95 |
