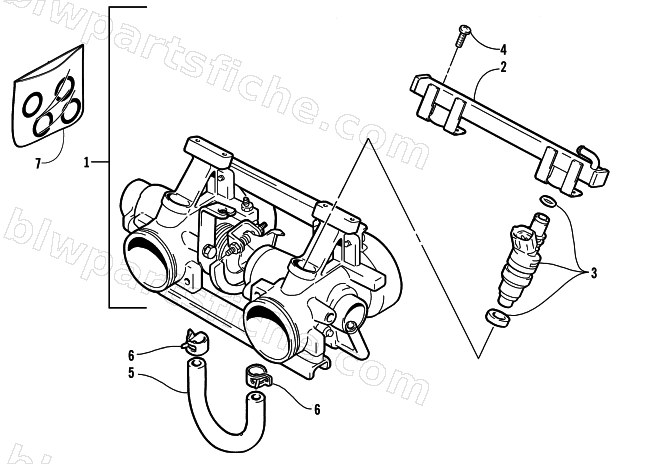

2005 Arctic Cat KING CAT 900 EFI EARLY BUILD — THROTTLE BODY ASSEMBLY
2005 KING CAT 900 EFI EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-056 | BODY ASSY,THROTTLE 02 800 EFI(CIR) | 1 | $1,929.95 | |
| 1 | 3006-057 | BODY ASSY,THROTTLE 02 800 EFI(SQU) | 1 | $2,221.95 | |
| 1 | 3006-058 | BODY ASSY,THROTTLE 02 800 EFI(TRI) | 1 | $2,048.95 | |
| 2 | 3006-062 | PIPE ASSY,FUEL DEL 02 800 EFI | 1 | $889.95 | |
| 3 | 3007-698 | INJECTOR,FUEL (CIR) | 1 | $571.95 | |
| 3 | 3007-699 | INJECTOR,FUEL (SQU) | 1 | $571.95 | |
| 3 | 3007-700 | INJECTOR,FUEL (TRI) | 1 | $750.95 | |
| 4 | 3005-320 | SCREW,M5X16 | 1 | $1.95 | |
| 5 | 3006-078 | HOSE,'02 800 EFI | 1 | $71.95 | |
| 6 | 3004-193 | CLAMP, HOSE-EFI THROTTLE BODY,M12 | 1 | $4.95 | |
| 7 | 3005-692 | O-RING SET | 1 | $118.95 |
