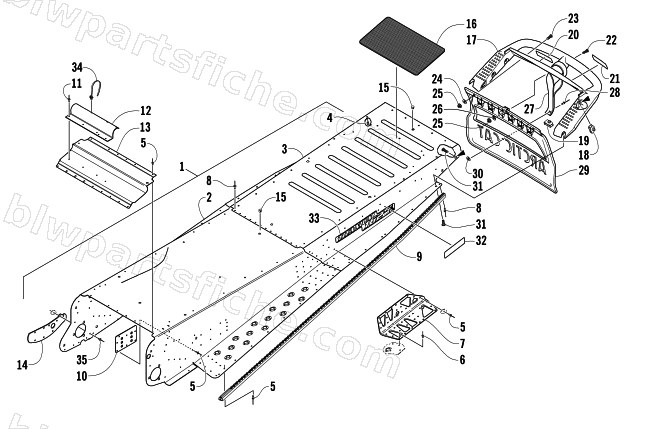

2005 Arctic Cat KING CAT 900 EFI EARLY BUILD — TUNNEL AND REAR BUMPER
2005 KING CAT 900 EFI EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-565 | TUNNEL, S/P ASSY-'04 MC 159" | 1 | $1,132.95 | |
| 2 | 3606-307 | BODY,FRONT-L/C-FORMED | 1 | $320.95 | |
| 3 | 3606-504 | BODY,REAR-159" W/STUDS-ASSY | 1 | $461.95 | |
| 5 | 0623-072 | RIVET,SOLID ALUM-156 X370 | 1 | $0.15 | |
| 5 | 0123-418 | RIVET, SOLID ALUM-.156 X.312 | 1 | $0.68 | |
| 5 | 0623-806 | RIVET, SOLID-.156 X.437-ALUM | 1 | $0.26 | |
| 5 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 6 | 8060-448 | RIVET,BLIND-DH AS56 PL | 1 | $0.40 | |
| 7 | 1706-918 | BRACKET,MTG-REAR SUSPENSION-RH-MACH | 1 | $99.95 | |
| 7 | 1706-917 | BRACKET,MTG-REAR SUSPENSION-LH-MACH | 1 | $99.95 | |
| 8 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 9 | 2606-966 | ROLL,TUNNEL-159"-R/H-FORMED | 1 | $142.95 | |
| 9 | 2606-967 | ROLL,TUNNEL-159"-L/H-FORMED | 1 | $142.95 | |
| 10 | 2706-116 | PLATE, BODY-REINFORCEMENT-PTD BLK | 1 | $6.75 | |
| 11 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 12 | 0607-751 | BRKT,PROTECTOR-MAIN HARNESS | 1 | $17.95 | |
| 13 | 2606-849 | COVER,DRIVEN SHAFT-FORMED | 1 | $97.95 | |
| 14 | 2606-905 | PLATE,BACKING-DROPCASE GUARD | 1 | $27.95 | |
| 15 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 16 | 2606-134 | PAD, RUBBER | 1 | $36.95 | |
| 17 | 1606-200 | BUMPER,REAR-Z,ZL,ZR | 1 | $142.95 | |
| 18 | 0623-771 | NUT,U-1/4-20 (.50 X .25 PANEL) | 1 | $1.64 | |
| 19 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 20 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 21 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 22 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 23 | 8017-579 | SCREW,MACH-TSTRH 1/4-20X.625 G2 Z&Y | 1 | $6.83 | |
| 24 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 25 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 26 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 27 | 1606-712 | STRAP,SNOWFLAP | 1 | $7.95 | |
| 28 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 29 | 3606-507 | SNOWFLAP,LONG | 1 | $256.95 | |
| 29 | 1606-507 | SNOWFLAP, REV. | 1 | $74.95 | |
| 30 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 31 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 32 | 0411-647 | DECAL,REFLECTOR-RED | 1 | $4.95 | |
| 33 | 5611-888 | DECAL,TUNNEL-"TITANIUM 162" (ORN) | 1 | $40.95 | |
| 34 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 | |
| 35 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 |
